Wavenet CC1804FPWH4 White 18/4 Shielded Plenum Control Cable, 1000 ft
Wavenet CC1804FPWH4 White 18/4 Shielded Plenum Control Cable, 1000 ft
Regular price
$650.55 USD
Regular price
Sale price
$650.55 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet CC1804FPWH4 is white 18 AWG, four-conductor shielded plenum control cable with stranded bare-copper conductors. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | CC1804FPWH4 |
|---|---|
| Cable type | Shielded plenum control cable |
| Conductor size | 18 AWG |
| Conductors | 4 |
| Conductor material | Stranded bare copper |
| Conductor construction | 7 / 0.4 mm (manufacturer notation) |
| Insulation | FR-PVC |
| Jacket | Low-smoke FR-PVC |
| Jacket color | White |
| Rating | CMP / CL2P |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
| Conductor colors | Black, red, white and green |
| Shield | Aluminum foil shown/present; coverage not specified |
| Drain wire | 7 / 0.20TC (manufacturer notation) |
| Maximum recommended pulling tension | 110 N |
| Minimum installation bend | 35 mm |
| Installation temperature | 0 to +50 °C |
| Operating temperature | -20 to +60 °C |
| Nominal outer diameter | 4.75 mm (±0.2 mm) |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

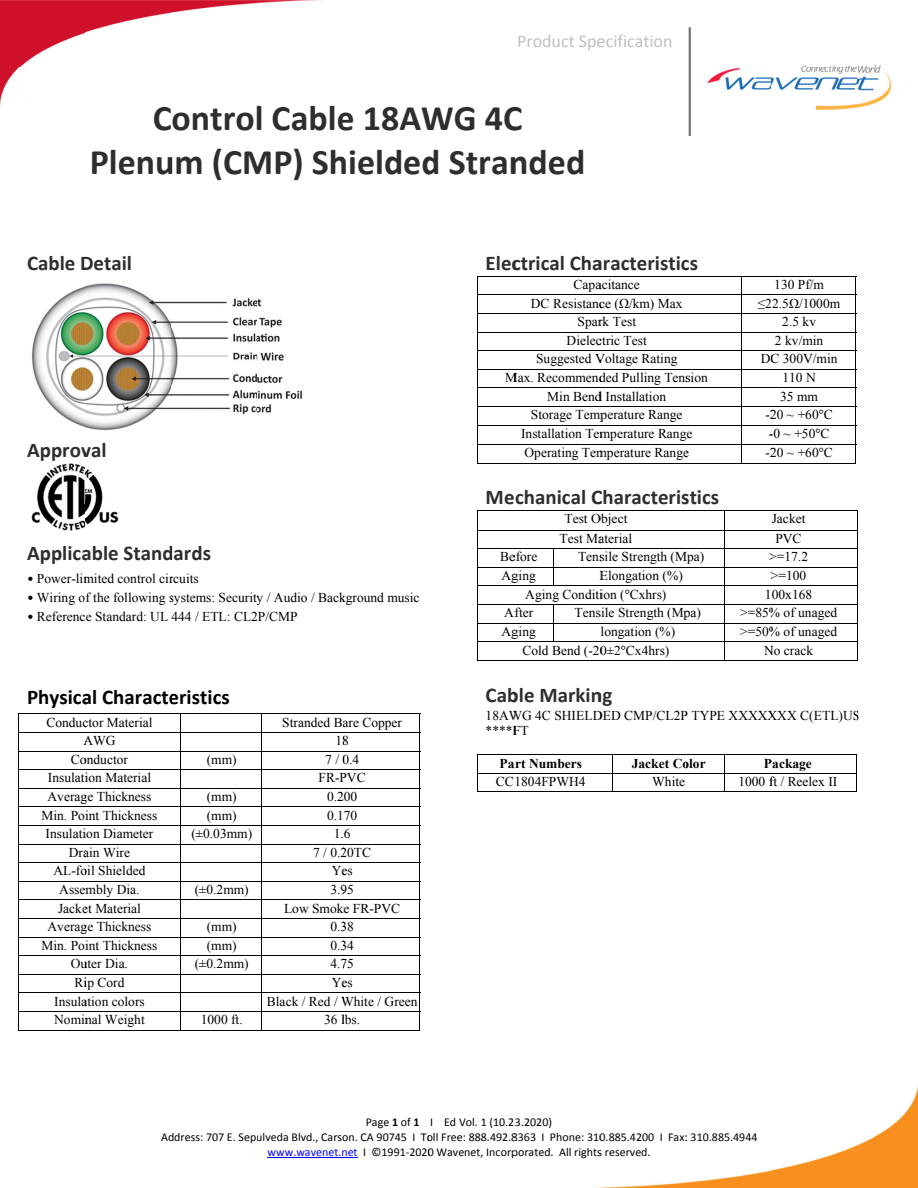

Manufacturer specification-sheet preview for CC1804FPWH4; this is a technical document, not product or package photography.
