Wavenet CC1804SRGY4 Grey 18/4 Shielded Riser Control Cable, 1000 ft
Wavenet CC1804SRGY4 Grey 18/4 Shielded Riser Control Cable, 1000 ft
Regular price
$564.81 USD
Regular price
Sale price
$564.81 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet CC1804SRGY4 is grey 18 AWG, four-conductor shielded riser control cable with stranded bare-copper conductors. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | CC1804SRGY4 |
|---|---|
| Cable type | Shielded riser control cable |
| Conductor size | 18 AWG |
| Conductors | 4 |
| Conductor material | Stranded bare copper |
| Conductor construction | 7 / 0.4 mm (manufacturer notation) |
| Insulation | PVC |
| Jacket | FR-PVC |
| Jacket color | Grey |
| Rating | CMR / FT4 |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
| Conductor colors | Black, red, yellow and green |
| Shield | Aluminum foil shown/present; coverage not specified |
| Drain wire | Present in labeled drawing; size/material not specified |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

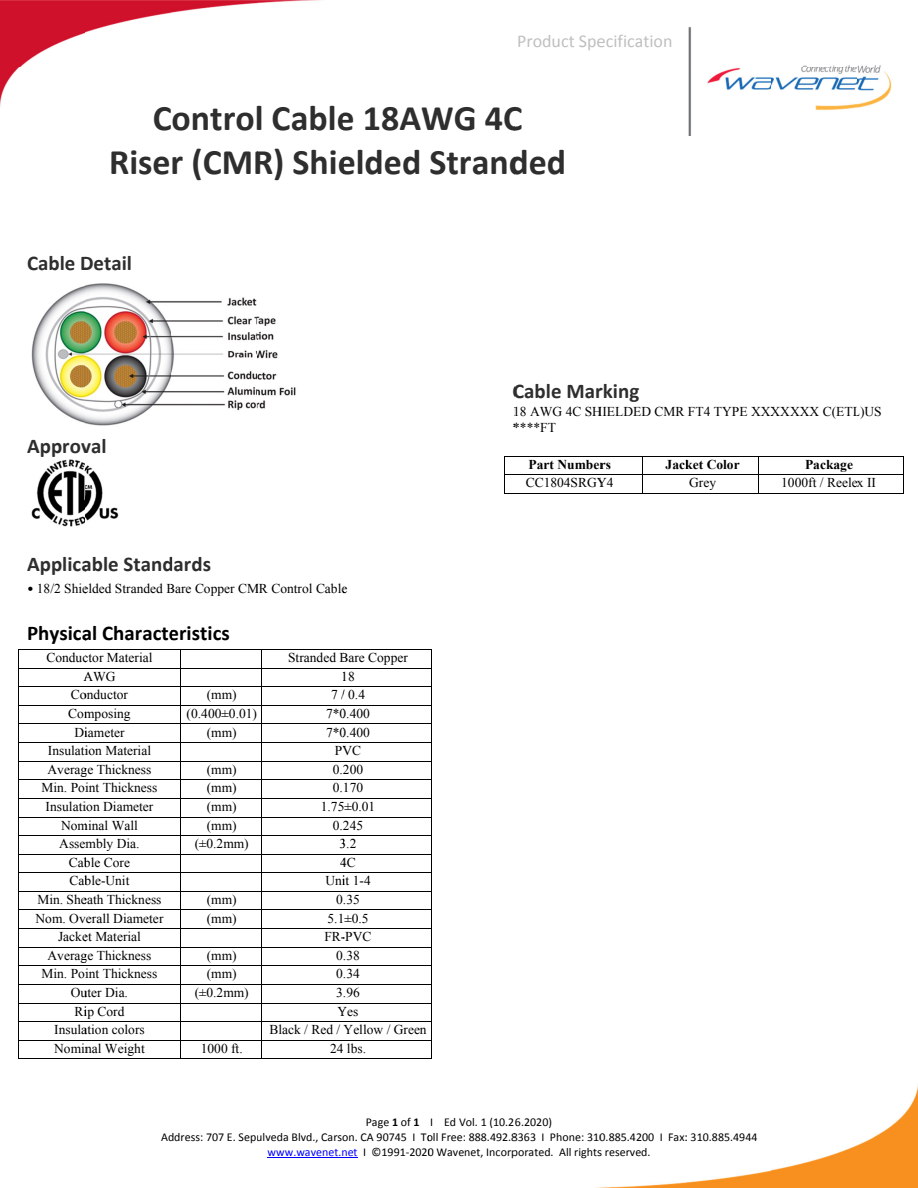

Manufacturer specification-sheet preview for CC1804SRGY4; this is a technical document, not product or package photography.
