Wavenet CC1806URGY2 Grey 18/6 Unshielded Riser Control Cable, 1000 ft
Wavenet CC1806URGY2 Grey 18/6 Unshielded Riser Control Cable, 1000 ft
Regular price
$511.99 USD
Regular price
Sale price
$511.99 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Manufacturer evidence identifies an 18 AWG six-conductor unshielded riser control cable; source limitations are retained below.
| Manufacturer part number | CC1806URGY2 |
|---|---|
| Cable type | Unshielded riser control cable |
| Conductor size | 18 AWG |
| Conductors | 6 |
| Conductor material | Stranded bare copper |
| Conductor construction | 7 / 0.40 mm (manufacturer notation) |
| Insulation | PVC |
| Jacket | FR-PVC |
| Jacket color | Grey |
| Conductor colors | Black, red, white, green, brown and blue |
| Rating | CMR |
| Ripcord | Yes |
| Nominal outside diameter | 6.05 mm (±0.2 mm) |
| Length | 1000 ft |
| Packaging | Reel |
| Maximum recommended pulling tension | 110 N |
| Minimum installation bend | 35 mm |
| Manufacturer suggested voltage rating | 300 V |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

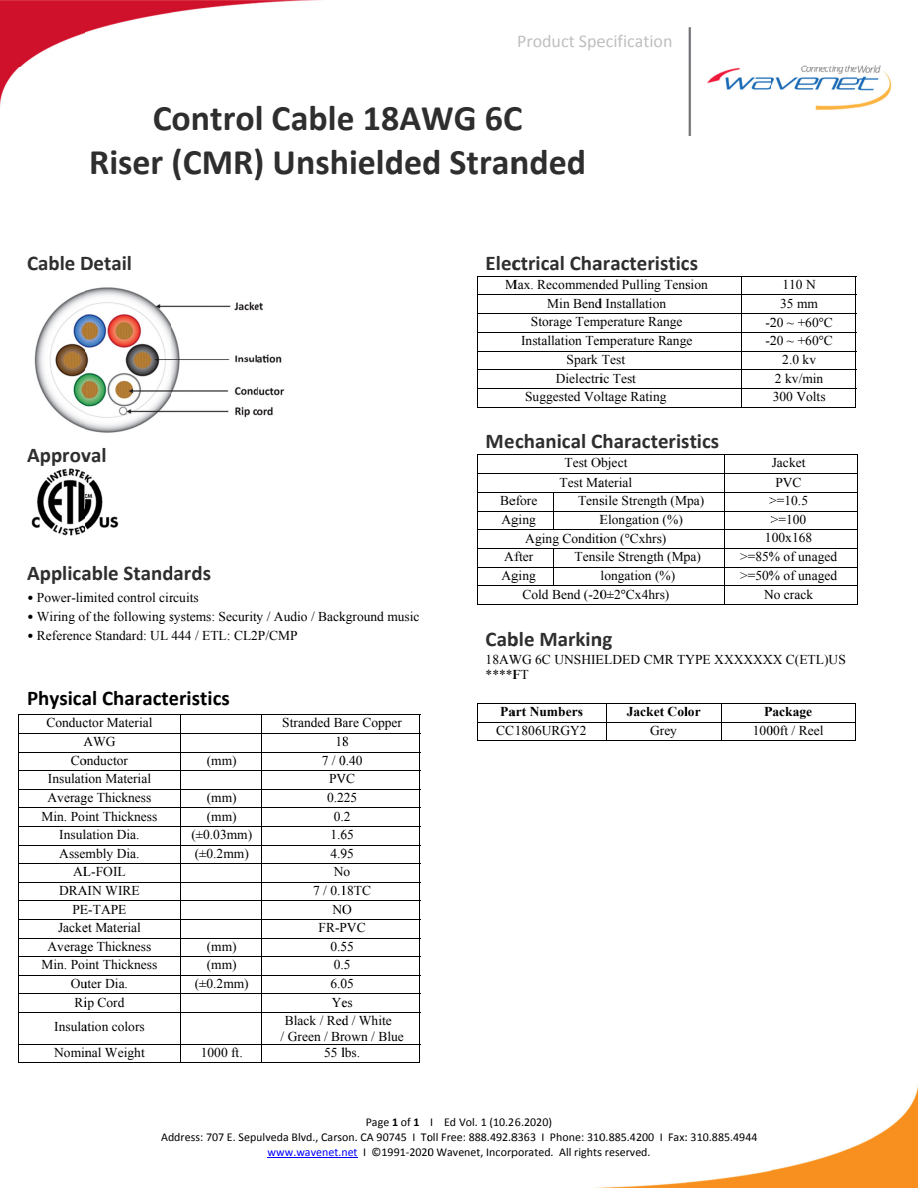

Manufacturer specification-sheet preview for CC1806URGY2; this is a technical document, not product or package photography.
