Wavenet CC2206SRGY4 Grey 22/6 Shielded Riser Control Cable, 1000 ft
Wavenet CC2206SRGY4 Grey 22/6 Shielded Riser Control Cable, 1000 ft
Regular price
$413.00 USD
Regular price
Sale price
$413.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet CC2206SRGY4 is grey 22 AWG, six-conductor shielded riser control cable with stranded bare copper, PVC insulation and an FR-PVC jacket. The manufacturer specifies AL-PET tape shielding and a drain/drop wire. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | CC2206SRGY4 |
|---|---|
| Cable type | Shielded riser control cable |
| Conductor size | 22 AWG |
| Conductors | 6 |
| Conductor material | Stranded bare copper |
| Conductor construction | 7 / 0.254 mm (manufacturer notation) |
| Insulation | PVC |
| Conductor colors | Black, red, white, green, brown and blue |
| Jacket | FR-PVC |
| Jacket color | Grey |
| Rating | CL2R / CMR |
| Shield | AL-PET tape; coverage not specified |
| Drain/drop wire | 7 x 0.254 Tinner Copper (manufacturer notation) |
| Nominal outer diameter | 3.70 mm (±0.2 mm) |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

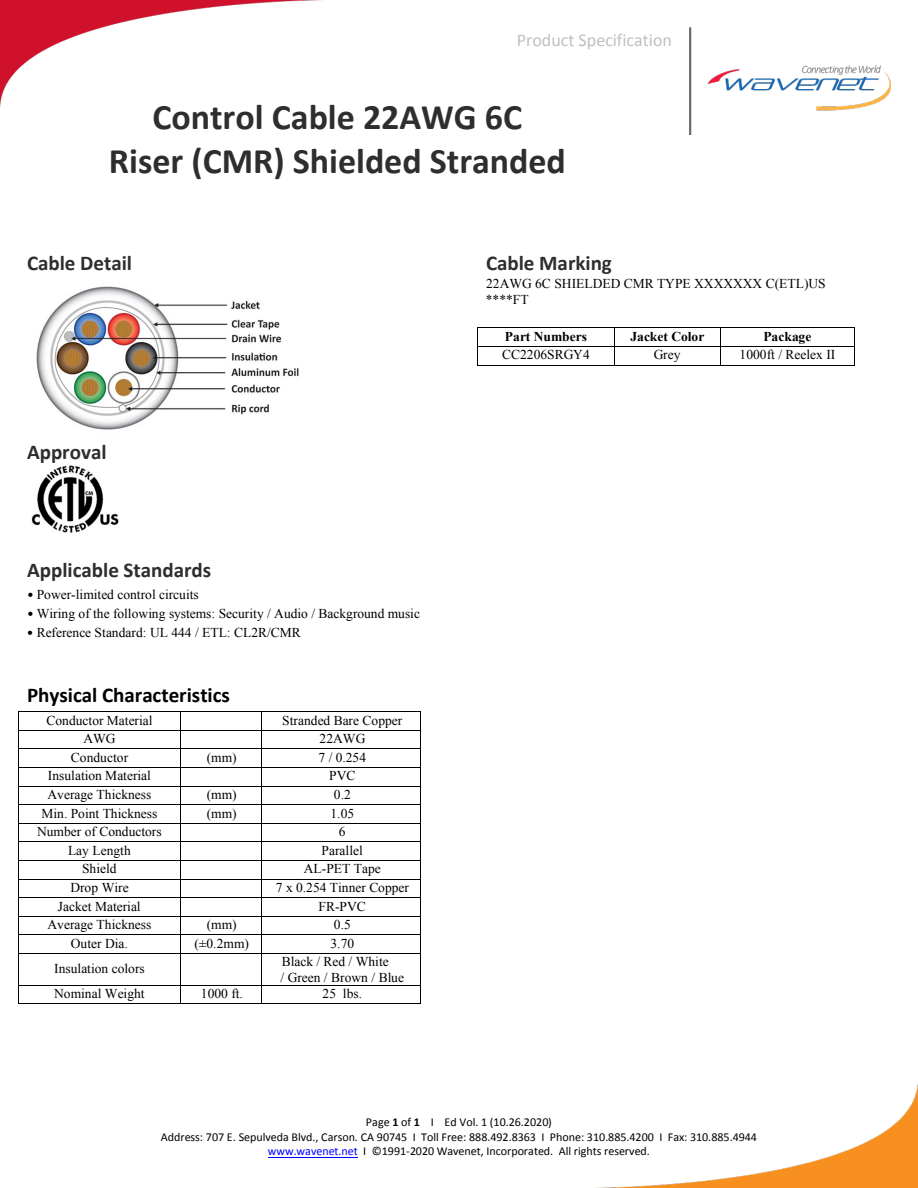

Manufacturer specification-sheet preview covering CC2206SRGY4; this is a technical document, not product or package photography.
