Wavenet CMP Composite Access-Control Cable
Wavenet CMP Composite Access-Control Cable
Couldn't load pickup availability
Wavenet CMP Composite Access-Control Cable. Choose the required option above. The part-number table identifies the exact sale unit for each selection.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
Part numbers and sale units
| Selection | Part number | Quantity 1 supplies |
|---|---|---|
| 500 ft / White | CCACESSUPWH2-500 | 500' Reel |
| 500 ft / Yellow | CCACESSUPYL2-500 | 500' Reel |
| 1000 ft / White | CCACESSUPWH2 | 1000' Reel |
| 1000 ft / Yellow | CCACESSUPYL2 | 1000' Reel |
500 ft / White — CCACESSUPWH2-500 specifications and image notes
Wavenet CCACESSUPWH2-500 combines four access-control cable members in one CMP plenum cable: a shielded 22AWG six-conductor reader member arranged as three pairs, a 22AWG two-conductor door-contact member, an 18AWG four-conductor lock-power member, and a 22AWG four-conductor request-to-exit member.
The sale unit is one 500-foot reel with a white outer jacket. The conductors are stranded bare copper. The member insulation and inner jackets use low-smoke flame-retardant PVC. The reader member includes aluminum foil and a tinned-copper drain wire.
The manufacturer specifies an overall assembly diameter of 11.5 ±0.30 mm and a maximum recommended pulling tension of 220 N. Its storage and installation temperature ranges are -20°C to +60°C, with an operating range of 0°C to +50°C. Review equipment requirements and installation instructions for the intended system.
Confirm current supplier availability and lead time for time-sensitive projects.

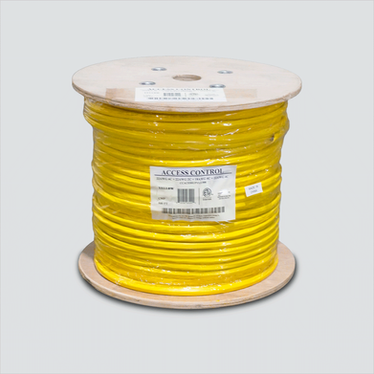

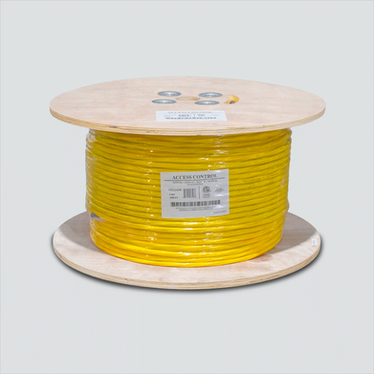

Manufacturer representative yellow cable images. This selected variant supplies white cable; yellow images illustrate family construction and reel packaging only. Exact reel length and MPN are established by the selected product record and specification, not by the image label. These are not RF-AV stock photographs.

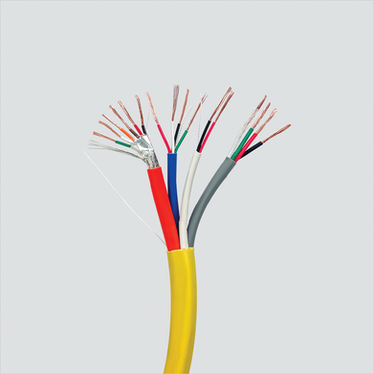

Manufacturer illustration showing four cable members within a yellow outer jacket, with foil and drain at the reader member. This selected variant has a white outer jacket. Use the specification for conductor identities and dimensions.
Wavenet composite access-control cable specification (PDF). The sheet contains two differently valued rows labeled minimum installation bend; this page does not assign a bend radius.
500 ft / Yellow — CCACESSUPYL2-500 specifications and image notes
Wavenet CCACESSUPYL2-500 combines four access-control cable members in one CMP plenum cable: a shielded 22AWG six-conductor reader member arranged as three pairs, a 22AWG two-conductor door-contact member, an 18AWG four-conductor lock-power member, and a 22AWG four-conductor request-to-exit member.
The sale unit is one 500-foot reel with a yellow outer jacket. The conductors are stranded bare copper. The member insulation and inner jackets use low-smoke flame-retardant PVC. The reader member includes aluminum foil and a tinned-copper drain wire.
The manufacturer specifies an overall assembly diameter of 11.5 ±0.30 mm and a maximum recommended pulling tension of 220 N. Its storage and installation temperature ranges are -20°C to +60°C, with an operating range of 0°C to +50°C. Review equipment requirements and installation instructions for the intended system.
Confirm current supplier availability and lead time for time-sensitive projects.
Manufacturer representative yellow cable images. The selected variant supplies yellow cable. Exact reel length and MPN are established by the selected product record and specification, not by the image label. These are not RF-AV stock photographs.
Manufacturer illustration showing four cable members within a yellow outer jacket, with foil and drain at the reader member. Use the specification for conductor identities and dimensions.
Wavenet composite access-control cable specification (PDF). The sheet contains two differently valued rows labeled minimum installation bend; this page does not assign a bend radius.
1000 ft / White — CCACESSUPWH2 specifications and image notes
Wavenet CCACESSUPWH2 combines four access-control cable members in one CMP plenum cable: a shielded 22AWG six-conductor reader member arranged as three pairs, a 22AWG two-conductor door-contact member, an 18AWG four-conductor lock-power member, and a 22AWG four-conductor request-to-exit member.
The sale unit is one 1,000-foot reel with a white outer jacket. The conductors are stranded bare copper. The member insulation and inner jackets use low-smoke flame-retardant PVC. The reader member includes aluminum foil and a tinned-copper drain wire.
The manufacturer specifies an overall assembly diameter of 11.5 ±0.30 mm and a maximum recommended pulling tension of 220 N. Its storage and installation temperature ranges are -20°C to +60°C, with an operating range of 0°C to +50°C. Review equipment requirements and installation instructions for the intended system.
Confirm current supplier availability and lead time for time-sensitive projects.
Manufacturer representative yellow cable images. This selected variant supplies white cable; yellow images illustrate family construction and reel packaging only. Exact reel length and MPN are established by the selected product record and specification, not by the image label. These are not RF-AV stock photographs.
Manufacturer illustration showing four cable members within a yellow outer jacket, with foil and drain at the reader member. This selected variant has a white outer jacket. Use the specification for conductor identities and dimensions.
Wavenet composite access-control cable specification (PDF). The sheet contains two differently valued rows labeled minimum installation bend; this page does not assign a bend radius.
1000 ft / Yellow — CCACESSUPYL2 specifications and image notes
Wavenet CCACESSUPYL2 combines four access-control cable members in one CMP plenum cable: a shielded 22AWG six-conductor reader member arranged as three pairs, a 22AWG two-conductor door-contact member, an 18AWG four-conductor lock-power member, and a 22AWG four-conductor request-to-exit member.
The sale unit is one 1,000-foot reel with a yellow outer jacket. The conductors are stranded bare copper. The member insulation and inner jackets use low-smoke flame-retardant PVC. The reader member includes aluminum foil and a tinned-copper drain wire.
The manufacturer specifies an overall assembly diameter of 11.5 ±0.30 mm and a maximum recommended pulling tension of 220 N. Its storage and installation temperature ranges are -20°C to +60°C, with an operating range of 0°C to +50°C. Review equipment requirements and installation instructions for the intended system.
Confirm current supplier availability and lead time for time-sensitive projects.
Manufacturer representative yellow cable images. The selected variant supplies yellow cable. Exact reel length and MPN are established by the selected product record and specification, not by the image label. These are not RF-AV stock photographs.
Manufacturer illustration showing four cable members within a yellow outer jacket, with foil and drain at the reader member. Use the specification for conductor identities and dimensions.
Wavenet composite access-control cable specification (PDF). The sheet contains two differently valued rows labeled minimum installation bend; this page does not assign a bend radius.
