Wavenet FC Series 42U Floor Cabinets

Wavenet FC Series 42U floor cabinets support network equipment in telecommunications rooms and wiring closets. Choose the nominal model depth and matching rail hardware below. Each sale includes one fully assembled cabinet.

Choose your model

• CBTF-FL42U-32: 32-inch nominal model depth, 27-inch manufacturer-stated usable depth and #12-24 threaded rails.
• CBTF-FL42U-40: 40-inch nominal model depth, 35-inch manufacturer-stated usable depth and M6 cage-nut mounting rails.

Match equipment depth, rail hardware, cable clearance and ventilation needs to the installation. Secure the cabinet according to manufacturer installation requirements. The stated load capacity does not establish a rated load while moving.

For doorway clearance, delivery planning or powered fan connections, request confirmation of the supplied cabinet configuration and installation requirements before ordering. Application equipment and accessories are not included unless separately specified.

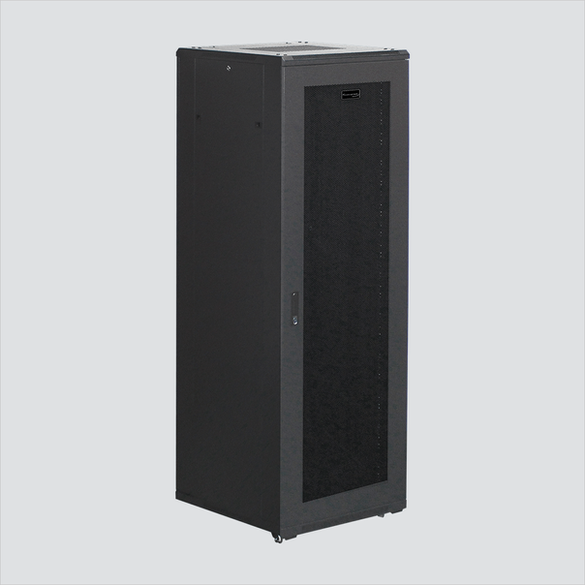

Manufacturer family image is used for both 42U depth models; it does not distinguish the 32-inch and 40-inch depths. Sale unit: one fully assembled cabinet. Equipment in application illustrations is not included.

Manufacturer page: CBTF-FL42U-32 · Manufacturer page: CBTF-FL42U-40 · Current manufacturer specification (PDF) · Manufacturer cabinet guide (PDF) · Manufacturer catalog, page 48 (PDF) · Request a quote · Browse Wavenet catalog

Supplier-order item. Contact RF-AV to confirm availability, lead time and delivery arrangements for time-sensitive orders.
