Wavenet FC1404URRD2 Red 14/4 Unshielded FPLR Fire-Alarm Cable, 1000 ft
Wavenet FC1404URRD2 Red 14/4 Unshielded FPLR Fire-Alarm Cable, 1000 ft
Regular price
$1,199.00 USD
Regular price
Sale price
$1,199.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet FC1404URRD2 is selected as red 14 AWG 4-conductor unshielded FPLR fire-alarm cable on one 1000-ft reel. The associated sheet specifies solid bare copper, PVC insulation and a PVC jacket.
| Selected manufacturer part number | FC1404URRD2 |
|---|---|
| PDF printed part number | FC1404URRD2 |
| Cable type | FPLR fire-alarm riser cable |
| Conductor size | 14 AWG |
| Conductors | 4 |
| Conductor material | Solid bare copper |
| Conductor diameter | 1.62 mm |
| Insulation | PVC |
| Average insulation thickness | 0.315 mm |
| Minimum insulation thickness | 0.290 mm |
| Insulated conductor diameter | 2.25 +/-0.05 mm |
| Shield | None |
| Drain wire | None |
| Jacket material | PVC |
| Average jacket thickness | 0.45 mm |
| Minimum jacket thickness | 0.40 mm |
| Jacket color | Red |
| Insulation colors | Black / Red / Yellow / Blue |
| Ripcord | Yes |
| Manufacturer rated temperature | 75 °C |
| Length | 1000 ft |
| Packaging | Reel |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

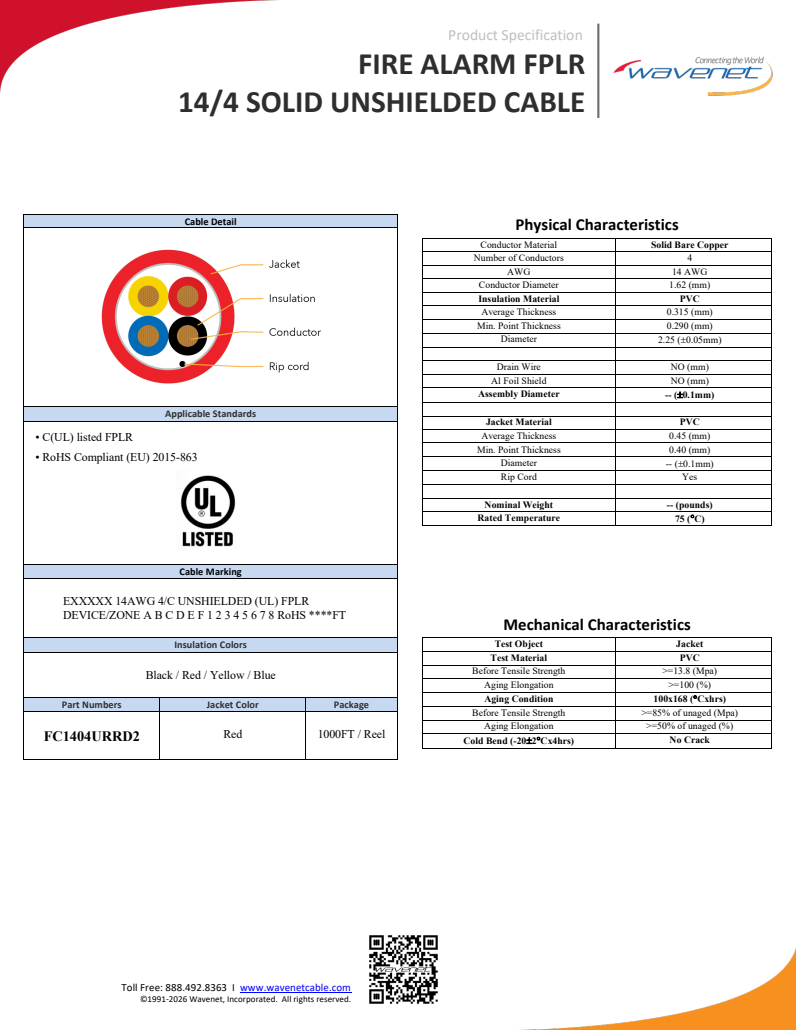

Manufacturer specification-sheet preview associated with FC1404URRD2; this is a technical document, not exact product or package photography.
