Wavenet FM12SCOM3 12-Fiber OM3 Duplex SC Panel
Wavenet FM12SCOM3 12-Fiber OM3 Duplex SC Panel
Couldn't load pickup availability

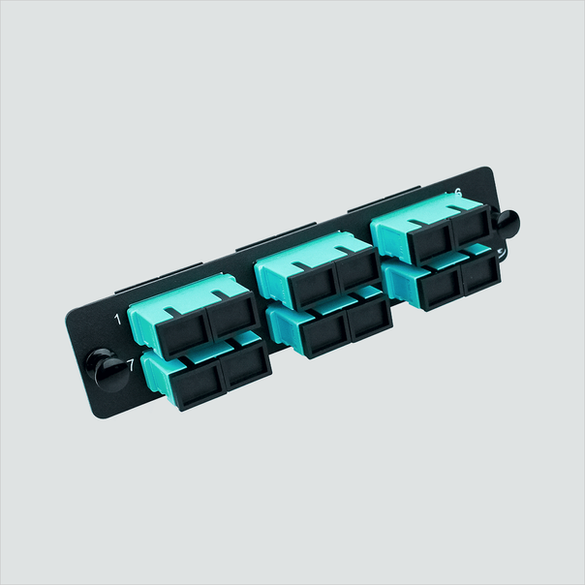

The Wavenet FM12SCOM3 is a populated OM3 multimode fiber adapter panel with six aqua duplex SC adapters and 12 fiber positions. The adapters use manufacturer-specified ceramic zirconia sleeves.
| MPN | FM12SCOM3 |
|---|---|
| Sale unit | Single Unit: one populated fiber adapter panel |
| Connector / format | SC, duplex adapters |
| Included adapters | Six duplex SC adapter bodies |
| Fiber positions | 12 total (6 adapters × 2 positions); positions do not mean supplied fiber cable |
| Fiber type / adapter color | Multimode OM3 / aqua |
| Alignment sleeve | Ceramic (zirconia), manufacturer specified |
| Included dust caps | 12 |
| Mounting compatibility | Manufacturer lists LGX compatibility; confirm exact enclosure opening, mounting and routing clearance |
Manufacturer-listed package contents
- 1 × Adapter panel
- 6 × Duplex SC adapter
- 12 × Dust caps
Confirm the selected enclosure interface and cable-routing clearance before ordering. Panel dimensions, connector polish and optical-loss values are not specified in the available product information. Fiber cable, pigtails and enclosure hardware are not listed in the package contents.
FM12SCOM3: six duplex SC adapters provide 12 fiber positions.
Available to order from our supplier. Stock and dispatch timing are not confirmed; contact RF-AV for current availability and lead time.
