Wavenet 24-Position Front-Loading Unloaded Keystone Panel

$34.13 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Port count 24

Packaging Single Pack

Quantity

Wavenet FLBPPWM is a 24-position, 1U front-loading unloaded keystone panel. Removable six-port modules allow front and rear access where the back of a rack is difficult to reach. Keystone jacks, couplers, cables, racks and cabinets are sold separately. Check connector clearance and fit; completed connection performance depends on the installed components.

Supplier order: Contact RF-AV to confirm current availability and lead time before ordering.

Each cart quantity of 1 supplies one complete selected pack.

Connector capacity	24 keystone positions
Panel design	Front-loading
Loading	Unloaded; jacks and couplers sold separately
Mounting	1U, standard 19-inch rack/cabinet mounting
Sale package	Single Pack
Panels per sale	1
Package contents	One 24-port unloaded panel; 1 rear cable management bracket; grounding wire; 4 mounting screws; installation instructions
Module access	Removable six-port modules; front and rear access
Grounding provision	Grounding wire included; complete installation depends on selected components
Port identification	Silkscreened port numbers

Exact part numbers and sale packages

FLBPPWM

Manufacturer documents

Manufacturer specification — FLBPPWM (PDF)

Manufacturer FLBPPWM product and options

Image notes

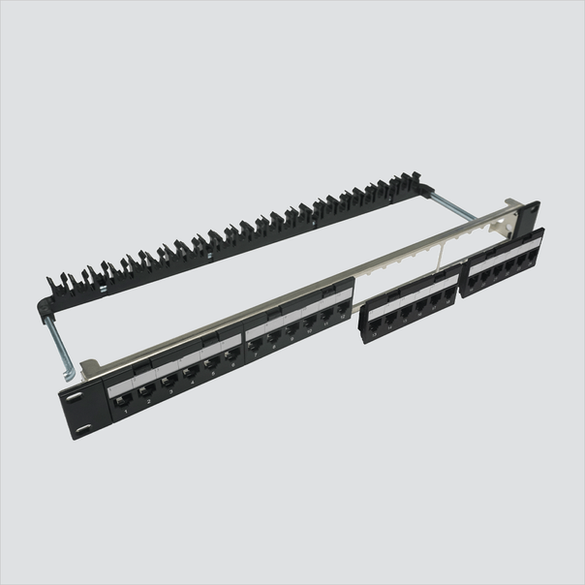

FLBPPWM: Manufacturer product view of Wavenet FLBPPWM, a 24-position unloaded front-loading panel. One panel per sale; keystone jacks and cables are not included.

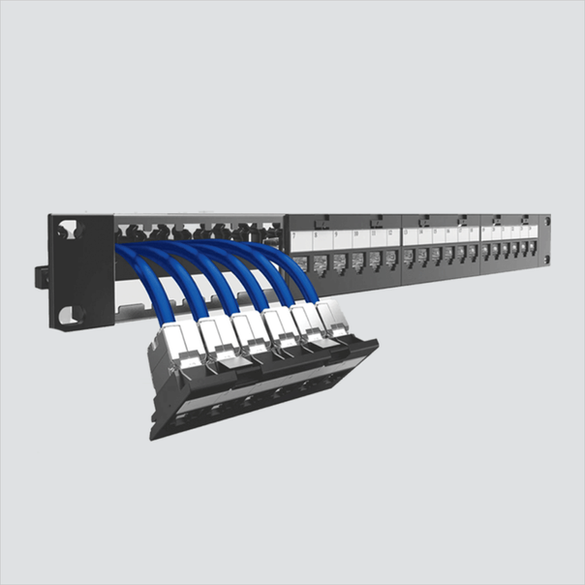

FLBPPWM: Manufacturer application example of FLBPPWM front access with installed connectors and blue cables. This sale supplies one unloaded panel; connectors and cables shown are not included.
