Wavenet H16E16QMBL2-500 Cat6 + RG6 Quad Combination Cable, 500ft

Wavenet H16E16QMBL2-500 pairs one Cat6 UTP cable with one RG6 quad-shield coaxial cable in a blue combination cable. The sale unit is one 500-foot reel for routes requiring both network and coaxial connections.

The Cat6 member contains four unshielded twisted pairs of 23 AWG solid bare-copper conductors with HDPE insulation and a spline separator. The 75-ohm RG6 member uses an 18 AWG copper-clad-steel (CCS) center conductor, foam-PE dielectric, two bonded aluminum-foil shields and braid layers with 60% and 40% coverage.

Use each member within the connected equipment's cable requirements. Check termination fit and permissible run length; a 500-foot supply reel does not establish the length of an Ethernet link. For coax connections that carry DC power, confirm that the equipment permits CCS center conductors.

Wavenet states CMR and FT4 cable markings and a 3.0 GHz coax sweep. Match the cable to the installation requirements. Confirm current availability and lead time for time-sensitive projects. Order quantity 1 means one reel, not a pallet.

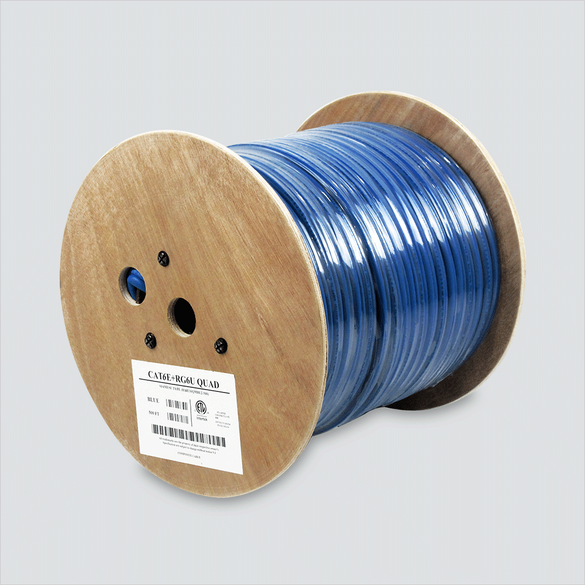

Manufacturer photo associated with H16E16QMBL2-500, showing blue Cat6/RG6 quad combination cable on a wooden reel. The sale unit is one 500-foot reel. This is not an RF-AV stock photograph.

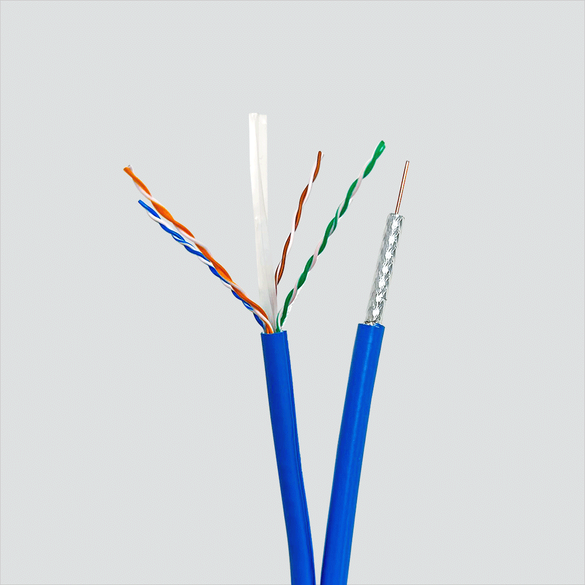

Manufacturer detail image showing the blue paired cable separated at its end: four twisted pairs and spline beside the coaxial member. Shown for construction reference; not an inspected RF-AV stock sample.

Wavenet H16E16QMBL2-500 specification (PDF).

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
