Wavenet H26E26QMGN2-500 Dual Cat6 + Dual RG6 Quad Cable, 500ft

Wavenet H26E26QMGN2-500 combines two Cat6 UTP cables and two RG6 quad-shield coaxial cables under one green PVC jacket. It is supplied as one 500-foot reel for routes that need both network and coaxial cabling.

Each Cat6 cable contains four unshielded twisted pairs of 23 AWG solid bare-copper conductors with a spline separator. Each 75-ohm RG6 cable has an 18 AWG copper-clad-steel (CCS) center conductor, foam-PE dielectric, two foil shields and aluminum braid layers with 60% and 40% coverage.

Use the Cat6 components for suitable Ethernet/data runs and the coaxial components for compatible RF video, CATV or CCTV installations. Check the required run length, termination fit and equipment specifications. Where a coax connection also carries DC power, verify that CCS is permitted by the equipment manufacturer.

Wavenet identifies CMR/CATVR and FT4 markings for this composite cable and states that the coax is swept to 3.0 GHz. Select the cable for the installation requirements; the 500-foot reel length does not establish an allowable network-link length.

Order quantity 1 means one 500-foot reel, not a pallet. Confirm current availability and lead time for time-sensitive projects.

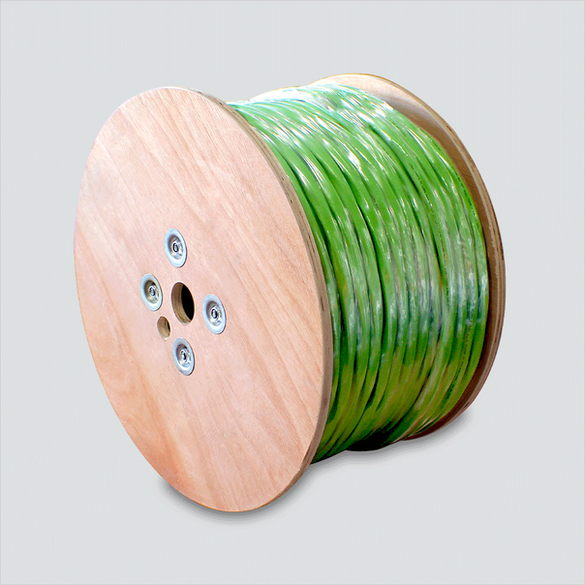

Manufacturer photo associated with H26E26QMGN2-500, showing green cable on a wooden reel. The sale unit is one 500-foot reel. This is not an RF-AV stock photograph.

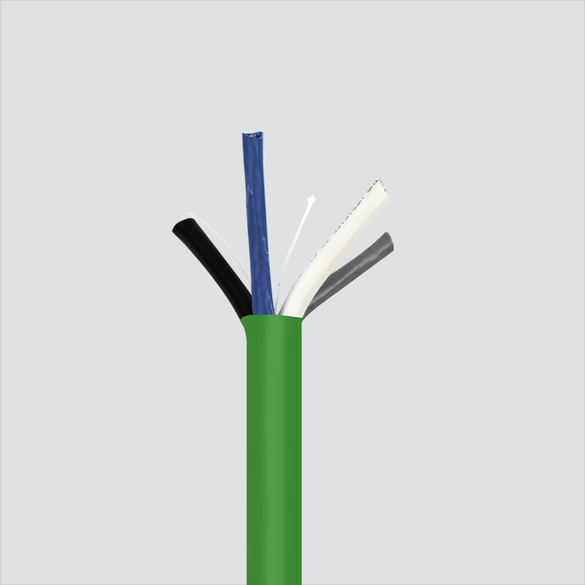

Manufacturer cutaway illustration of the green outer jacket and four inner cable jackets. Illustration only; not to scale and not a photograph of inspected stock.

Wavenet H26E26QMGN2-500 specification (PDF).

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
