Wavenet H59+182JOSPBK3-500 Outdoor RG59 + 18/2 Cable, 500ft

Wavenet H59+182JOSPBK3-500 combines RG59 coaxial cable and an 18/2 power cable in a black siamese construction for outdoor CCTV and video applications. The manufacturer identifies the PE-jacketed cable as UV rated and suitable for direct burial.

The RG59 leg has a 20 AWG solid copper-clad steel center conductor, foamed polyethylene dielectric and a copper-clad aluminum braid with 95% stated coverage. The power leg contains two 18 AWG, seven-strand bare-copper conductors with PE insulation. Nominal coax impedance is 75 ohms.

Quantity 1 is one continuous 500-foot siamese cable assembly supplied in a reel-in-box. Both joined legs run the same 500-foot length; this is not two separate cables or a pallet quantity.

Confirm connector dimensions, camera requirements and power-circuit design for the intended installation. Supply length does not guarantee a camera transmission distance. For time-sensitive projects, confirm current availability and lead time.

Specifications

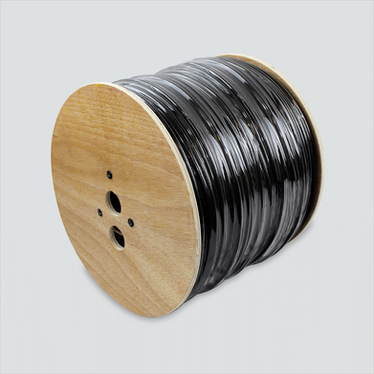

Manufacturer-associated reel image for H59+182JOSPBK3-500. The box is not pictured; quantity 1 is one black 500-foot reel-in-box. Photograph does not verify stock or pictured footage.

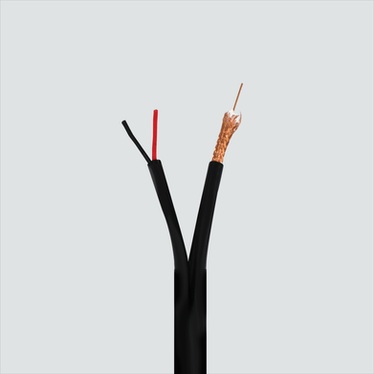

Manufacturer-associated cutaway illustrating siamese coax and two power conductors. Appearance does not prove metal composition or shield coverage; the exact specification controls.

Wavenet H59+182JOSPBK3-500 specification (PDF). The sheet contains an inconsistent coax center-conductor diameter; confirm termination dimensions before selecting connectors.

Supplier-order item. Contact RF-AV for current availability and lead time.
