Wavenet HD-5EKSJXX CAT5E HDJ 180° Keystone Jack, Single Pack
Wavenet HD-5EKSJXX CAT5E HDJ 180° Keystone Jack, Single Pack
Couldn't load pickup availability
Wavenet HD-5EKSJXX CAT5E HDJ-series unshielded RJ45 keystone jacks feature a narrow PCB body and 180 degrees 110-type punch-down termination for 22–24 AWG solid UTP wire, with T568A or T568B wiring.
Sale quantity: Each cart quantity of 1 supplies 1 keystone jack and 1 wire cap in the selected color.
Supplier order: Contact RF-AV to confirm current availability and lead time before ordering.
| Series | HDJ |
|---|---|
| Category | CAT5E |
| Shielding | Unshielded UTP |
| Connector | 8P8C RJ45 keystone jack |
| Termination | 110-type punch-down |
| Orientation | 180 degrees |
| Wiring | T568A / T568B |
| Supported conductor | 22–24 AWG solid UTP wire |
| Construction | Narrow body with PCB technology |
| Contact plating | 50 micro-inches gold |
| Manufacturer-stated insertion durability | Minimum 750 plug-insertion cycles |
| Sale package | Single Pack |
| Package contents | 1 keystone jack and 1 wire cap |
Exact part numbers
| Manufacturer part number | Color |
|---|---|
| HD-5EKSJBK | Black |
| HD-5EKSJBL | Blue |
| HD-5EKSJGN | Green |
| HD-5EKSJIV | Ivory |
| HD-5EKSJLA | Light Almond |
| HD-5EKSJOR | Orange |
| HD-5EKSJRD | Red |
| HD-5EKSJWH | White |
| HD-5EKSJYL | Yellow |
Manufacturer documents
Manufacturer specification (PDF)
Image notes

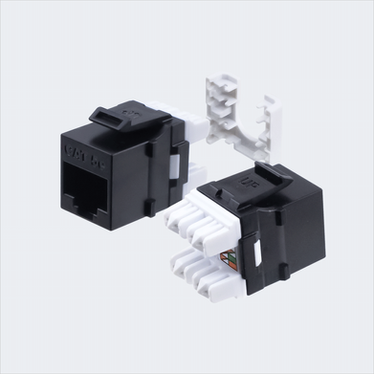

Black: Manufacturer black CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one black jack and one wire cap.

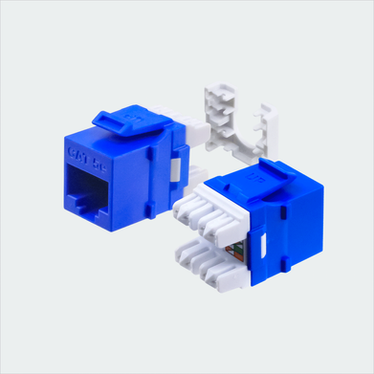

Blue: Manufacturer blue CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one blue jack and one wire cap.

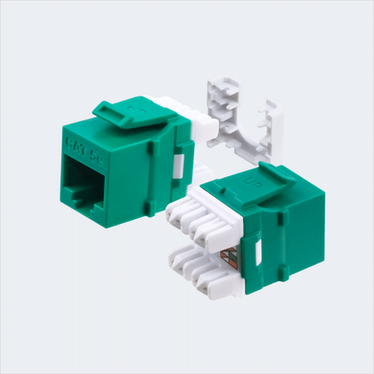

Green: Manufacturer green CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one green jack and one wire cap.

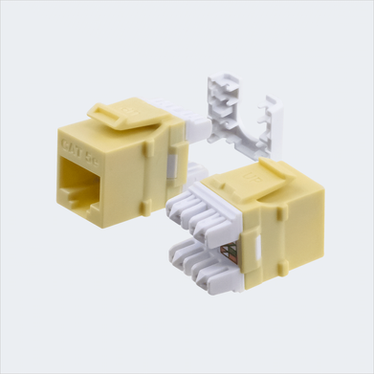

Ivory: Manufacturer ivory CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one ivory jack and one wire cap.

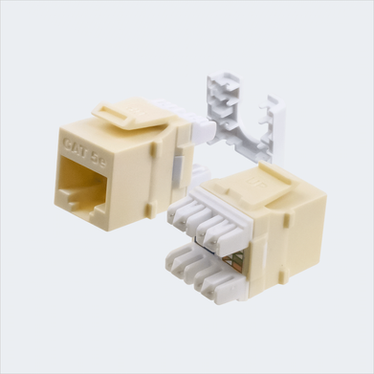

Light Almond: Manufacturer light almond CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one light almond jack and one wire cap.

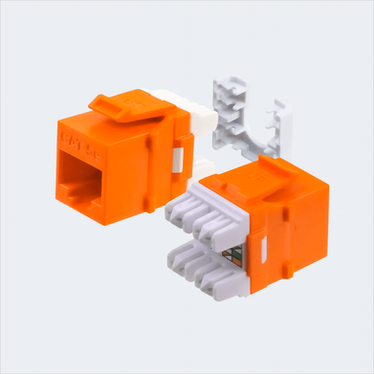

Orange: Manufacturer orange CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one orange jack and one wire cap.

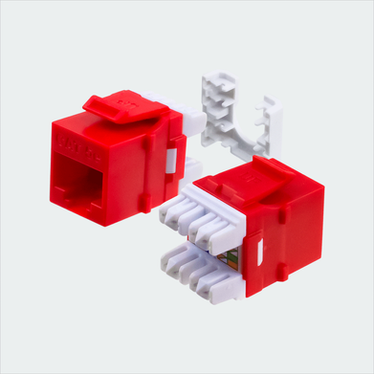

Red: Manufacturer red CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one red jack and one wire cap.

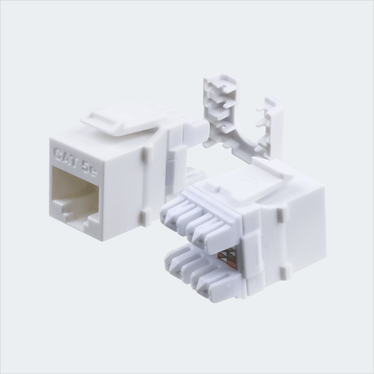

White: Manufacturer white CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one white jack and one wire cap.

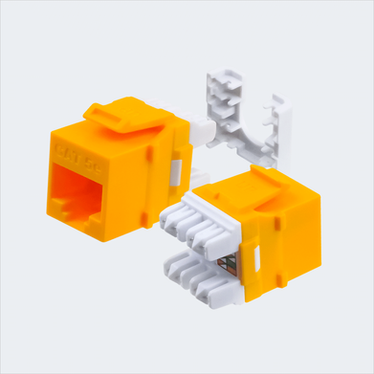

Yellow: Manufacturer yellow CAT5E HDJ jack shown in multiple views with cap removed. This listing supplies one yellow jack and one wire cap.
