Wavenet JHMF02-C 2-inch Batwing J-Hooks - 25-Pack

Wavenet JHMF02-C supplies 25 Multi-Function Batwing J-hook assemblies and25 cable-retainer clips. The nominal hook diameter is 2 inches. The attached mounting clip is designed for threaded rod or ceiling drop wire.

Wavenet lists 3/8-inch rod and #12-#8 wire for this exact model. The hooks use 18-gauge galvanized steel. Confirm the supporting member and installation requirements; the listed hook diameter is not an overall product dimension.

The manufacturer lists 60 lb static load per assembly and cable capacities of 90 Cat5e, 60 Cat6 or 35 Cat6A cables based on 70% fill. Verify cable diameter, bend radius, loading and the complete supporting installation. The per-assembly value is not a combined package rating.

Overall dimensions, mounting-clip gauge and any additional installation hardware are not specified in the reviewed sources. Manufacturer photos show one assembly; refer to the stated package contents.

Manufacturer product | Manufacturer specification PDF | Manufacturer catalog, page 64

Contact RF-AV for current availability and lead time. Discuss cable support and project quantities or browse the Wavenet catalog.

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.

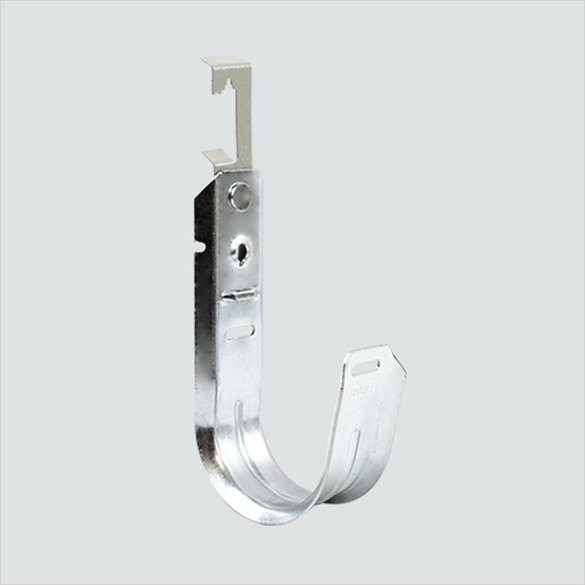

Manufacturer view of one Wavenet JHMF02-C J-hook with Batwing mounting attachment.25-PACK includes 25 assemblies and25 retainer clips; not all contents shown.
