Wavenet
Wavenet LUTRON-WHITE 18/4 Shielded Control Cable, Blue/White Stripe, 1000 ft
Wavenet LUTRON-WHITE 18/4 Shielded Control Cable, Blue/White Stripe, 1000 ft
Regular price
$739.00 USD
Regular price
Sale price
$739.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet LUTRON-WHITE is 18 AWG, four-conductor shielded control cable with stranded bare-copper conductors and a stranded tinned-copper drain. It has PVC-HYTREL SKIN insulation as specified by the manufacturer and a blue PVC jacket with a white stripe. Supplied on one 1000 ft reel.
| Manufacturer part number | LUTRON-WHITE |
|---|---|
| Cable type | Shielded control cable with drain |
| Conductor size | 18 AWG |
| Conductors | 4 |
| Conductor material | Stranded bare copper |
| Conductor construction | 42 / 0.160 mm (manufacturer notation) |
| Insulation | PVC-HYTREL SKIN (manufacturer notation) |
| Jacket | PVC |
| Jacket color | Blue with white stripe |
| Shield | Aluminum/polyester |
| Drain wire | 7 / 0.20TC stranded tinned copper (manufacturer notation) |
| Ripcord | Yes; nylon |
| Manufacturer markings | CL3 / CM / FT4 |
| Nominal outer diameter | 7.5 mm (±0.10 mm) |
| Manufacturer rated voltage | 600 V |
| Manufacturer rated temperature | 75 °C |
| Length | 1000 ft |
| Packaging | Reel |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

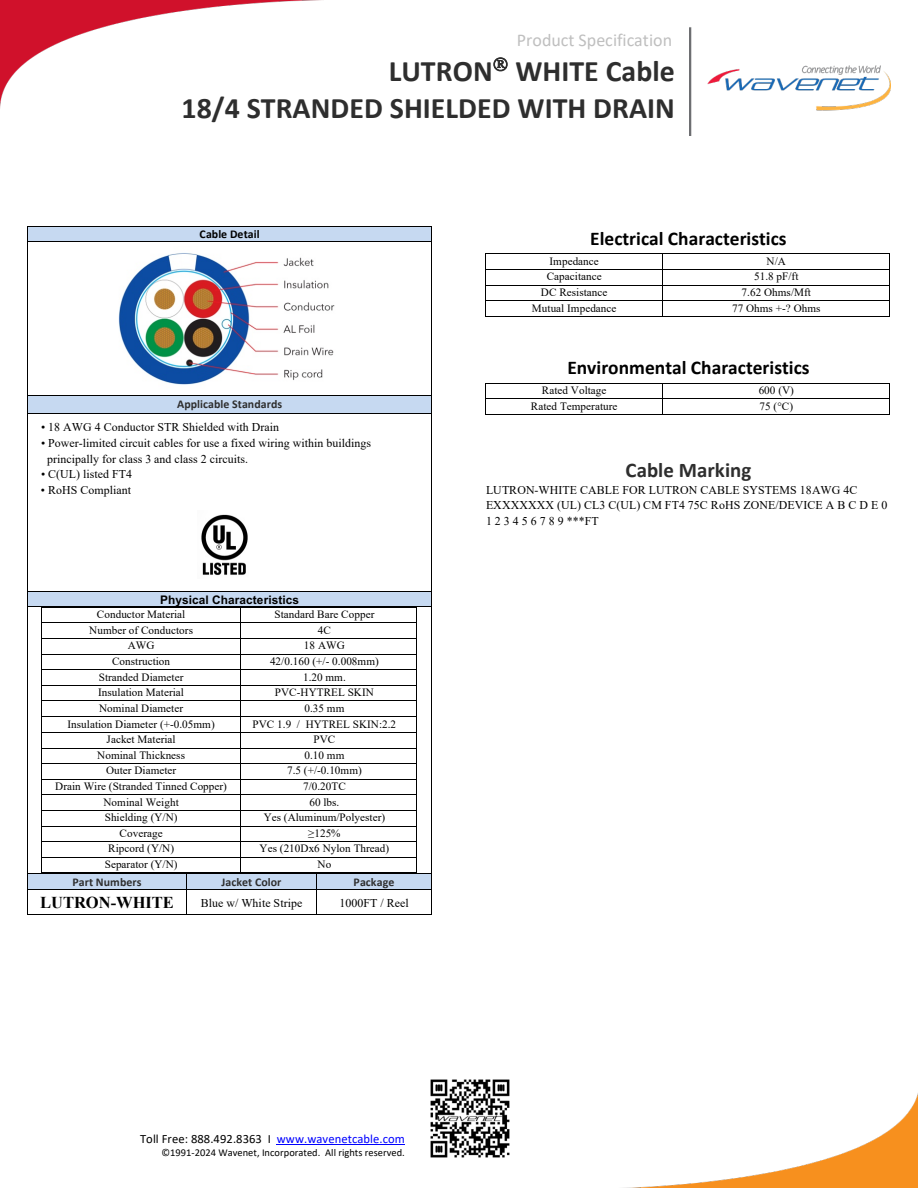

Manufacturer specification-sheet preview for Wavenet LUTRON-WHITE; this is a technical document, not product or package photography.
