Wavenet

Wavenet Oversized Single-Gang Faceplates

$0.95 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Port count 1 2 3 4 6

Color Ivory White

Packaging Single Pack

Quantity

Wavenet oversized single-gang faceplates have a glossy flush design and no ID windows. Choose 1, 2, 3, 4 or 6 keystone ports in Ivory or White. Greater wall coverage helps conceal drywall irregularities. The manufacturer family comparison diagram shows a face size of 3.12 inches wide by 4.87 inches high. These faceplates fit a standard single-gang outlet box and standard rectangular NEMA openings.

Sale quantity: Each cart quantity of 1 supplies one faceplate in the selected port count and color, with color-matched mounting screws.

Supplier order: Contact RF-AV to confirm current availability and lead time before ordering.

Gang	Single
Plate size	Oversized
Manufacturer-stated face dimensions	3.12 in wide × 4.87 in high (family comparison diagram)
Mounting style	Flush
ID windows	Without ID windows
Finish	Glossy
Openings	Snap-in modular keystone openings
Fit	Standard single-gang outlet box; standard rectangular NEMA openings

Exact part numbers and sale packages

Part number	Color	Ports
OSWP01IV	Ivory	1
OSWP01WH	White	1
OSWP02IV	Ivory	2
OSWP02WH	White	2
OSWP03IV	Ivory	3
OSWP03WH	White	3
OSWP04IV	Ivory	4
OSWP04WH	White	4
OSWP06IV	Ivory	6
OSWP06WH	White	6

Manufacturer documents

Manufacturer family specification (PDF)

Manufacturer catalog, page 39 (distributor-hosted PDF)

Manufacturer OSWP01XX product family

Manufacturer OSWP02XX product family

Manufacturer OSWP03XX product family

Manufacturer OSWP04XX product family

Manufacturer OSWP06XX product family

Image notes

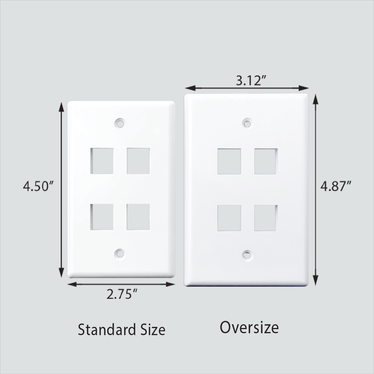

OSWP01IV: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one ivory 1-port oversized faceplate.

OSWP01WH: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one white 1-port oversized faceplate.

OSWP02IV: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one ivory 2-port oversized faceplate.

OSWP02WH: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one white 2-port oversized faceplate.

OSWP03IV: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one ivory 3-port oversized faceplate.

OSWP03WH: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one white 3-port oversized faceplate.

OSWP04IV: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one ivory 4-port oversized faceplate.

OSWP04WH: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one white 4-port oversized faceplate.

OSWP06IV: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one ivory 6-port oversized faceplate.

OSWP06WH: Manufacturer size-comparison diagram shows white four-port examples: standard at left and oversized at right. It is not an exact product photograph of this listing. This listing supplies one white 6-port oversized faceplate.
