Wavenet RG59 + 18/2 CCS Siamese CMR Cable
Wavenet RG59 + 18/2 CCS Siamese CMR Cable
Couldn't load pickup availability
Wavenet RG59 + 18/2 CCS Siamese CMR Cable. Choose the required option above. The part-number table identifies the exact sale unit for each selection.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
Part numbers and sale units
| Selection | Part number | Quantity 1 supplies |
|---|---|---|
| 500' RIB (Reel-In-Box) / Black | H59+182JRBK3-500 | 500' RIB (Reel-In-Box) |
| 500' RIB (Reel-In-Box) / White | H59+182JRWH3-500 | 500' RIB (Reel-In-Box) |
| 1000' Reel / White | H59+182JRWH2 | 1000' Reel |
500' RIB (Reel-In-Box) / Black — H59+182JRBK3-500 specifications and image notes
Wavenet H59+182JRBK3-500 combines RG59 coax and 18/2 power cable in a siamese assembly for indoor CCTV and video cabling. The manufacturer identifies this family as CMR riser cable with FT4 marking.
The RG59 leg uses a 20AWG solid copper-clad steel center,foamed PE dielectric and 95% copper-clad aluminum braid. The power leg contains two 18AWG stranded bare-copper conductors, each built from seven strands, with PE insulation. The assembly uses PVC jacketing and nominal 75-ohm coax impedance.
Quantity 1 is one black 500-foot reel-in-box. Both joined legs run the same supply length; do not count footage twice. Confirm camera requirements, power-circuit design and connector fit for the application. Supply footage is not a guaranteed transmission distance.
Confirm current availability and lead time for time-sensitive projects.
Wavenet H59+182JRXX family specification (PDF).

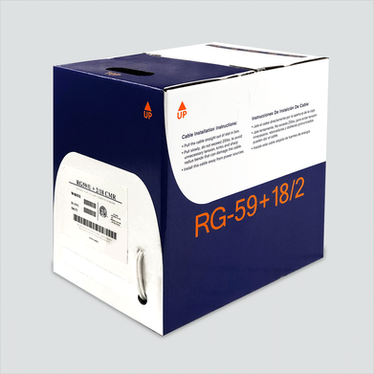

Manufacturer family packaging illustration; quantity1 is one black500-foot reel-in-box. Image does not verify selected color,stock orpictured footage.

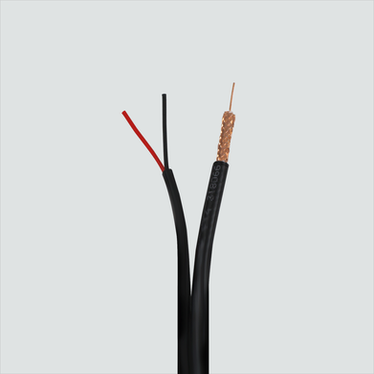

Representative black family cutaway; this selected item is black. Exact specification controls CCS coax,CCA braid andbare-copper power; appearance alone does not prove composition orcoverage.
500' RIB (Reel-In-Box) / White — H59+182JRWH3-500 specifications and image notes
Wavenet H59+182JRWH3-500 combines RG59 coax and 18/2 power cable in a siamese assembly for indoor CCTV and video cabling. The manufacturer identifies this family as CMR riser cable with FT4 marking.
The RG59 leg uses a 20AWG solid copper-clad steel center,foamed PE dielectric and 95% copper-clad aluminum braid. The power leg contains two 18AWG stranded bare-copper conductors, each built from seven strands, with PE insulation. The assembly uses PVC jacketing and nominal 75-ohm coax impedance.
Quantity 1 is one white 500-foot reel-in-box. Both joined legs run the same supply length; do not count footage twice. Confirm camera requirements, power-circuit design and connector fit for the application. Supply footage is not a guaranteed transmission distance.
Confirm current availability and lead time for time-sensitive projects.
Wavenet H59+182JRXX family specification (PDF).
Manufacturer family packaging illustration; quantity1 is one white500-foot reel-in-box. Image does not verify selected color,stock orpictured footage.
Representative black family cutaway; this selected item is white. Exact specification controls CCS coax,CCA braid andbare-copper power; appearance alone does not prove composition orcoverage.
1000' Reel / White — H59+182JRWH2 specifications and image notes
Wavenet H59+182JRWH2 combines RG59 coax and 18/2 power cable in a siamese assembly for indoor CCTV and video cabling. The manufacturer identifies this family as CMR riser cable with FT4 marking.
The RG59 leg uses a 20AWG solid copper-clad steel center,foamed PE dielectric and 95% copper-clad aluminum braid. The power leg contains two 18AWG stranded bare-copper conductors, each built from seven strands, with PE insulation. The assembly uses PVC jacketing and nominal 75-ohm coax impedance.
Quantity 1 is one white 1,000-foot reel. Both joined legs run the same supply length; do not count footage twice. Confirm camera requirements, power-circuit design and connector fit for the application. Supply footage is not a guaranteed transmission distance.
Confirm current availability and lead time for time-sensitive projects.
Wavenet H59+182JRXX family specification (PDF).
Representative black family cutaway; this selected item is white. Exact specification controls CCS coax,CCA braid andbare-copper power; appearance alone does not prove composition orcoverage.
