Wavenet RG59 Riser Coax, 1000 ft
Wavenet RG59 Riser Coax, 1000 ft
Couldn't load pickup availability
Wavenet RG59 Riser Coax, 1000 ft. Choose the required option above. The part-number table identifies the exact sale unit for each selection.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
Part numbers and sale units
| Selection | Part number | Quantity 1 supplies |
|---|---|---|
| Black | RG59RBK4 | 1000 ft REELEX II pull box |
| White | RG59RWH4 | 1000 ft REELEX II pull box |
Black — RG59RBK4 specifications and image notes
Wavenet RG59RBK4 is black RG-59/U riser coaxial cable with a 20 AWG solid bare-copper center conductor, foam PE dielectric and PVC jacket. The manufacturer specifies a C.C.A. braid with 95% coverage and 75-ohm nominal impedance. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | RG59RBK4 |
|---|---|
| Cable type | RG-59/U coaxial |
| Center conductor | 20 AWG solid bare copper |
| Dielectric | Foam PE |
| Braid shield | C.C.A., 95% coverage (manufacturer designation) |
| Jacket | PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
| Nominal cable diameter | 0.2283 in |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

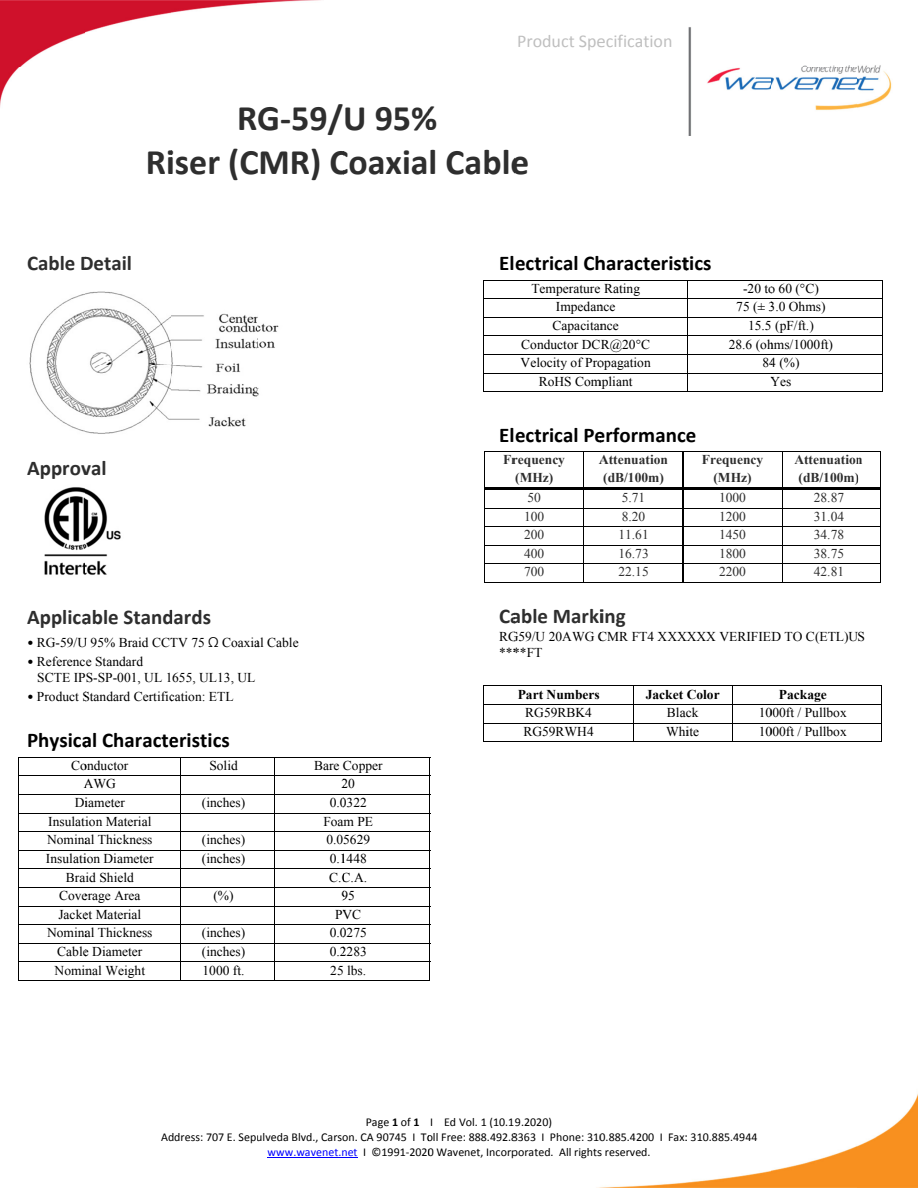

Manufacturer specification-sheet preview for selected black RG59RBK4; this technical drawing is not exact product or package photography.
White — RG59RWH4 specifications and image notes
Wavenet RG59RWH4 is white RG-59/U riser coaxial cable with a 20 AWG solid bare-copper center conductor, foam PE dielectric and PVC jacket. The manufacturer specifies a C.C.A. braid with 95% coverage and 75-ohm nominal impedance. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | RG59RWH4 |
|---|---|
| Cable type | RG-59/U coaxial |
| Center conductor | 20 AWG solid bare copper |
| Dielectric | Foam PE |
| Braid shield | C.C.A., 95% coverage (manufacturer designation) |
| Jacket | PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
| Nominal cable diameter | 0.2283 in |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

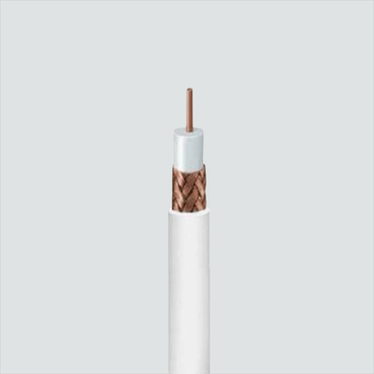

Manufacturer white RG59 cable-detail illustration for RG59RWH4. Image does not verify exact SKU, package footage, braid metallurgy or fire rating; the linked specification controls these details.
