Wavenet RG59PWH4 White RG59 Plenum Coax, 1000 ft
Wavenet RG59PWH4 White RG59 Plenum Coax, 1000 ft
Couldn't load pickup availability
Wavenet RG59PWH4 is white RG-59/U plenum coaxial cable with a 20 AWG solid bare-copper center conductor, foam FEP dielectric and plenum-polymer jacket. The manufacturer specifies a C.C.A. braid with 95% coverage and 75-ohm nominal impedance. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | RG59PWH4 |
|---|---|
| Cable type | RG-59/U coaxial |
| Center conductor | 20 AWG solid bare copper |
| Dielectric | Foam FEP |
| Braid shield | C.C.A., 95% coverage (manufacturer designation) |
| Jacket | Plenum polymer |
| Jacket color | White |
| Rating | CMP / FT6 |
| Impedance | 75 ± 3 ohms |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
| Shield description | Dual shield (manufacturer title); foil details not specified |
Manufacturer specification (PDF)
The manufacturer sheet contains an unresolved conductor-diameter entry. Confirm dimensions and connector fit with RF-AV before selecting terminations.
Contact RF-AV for current availability and lead time before time-sensitive orders.

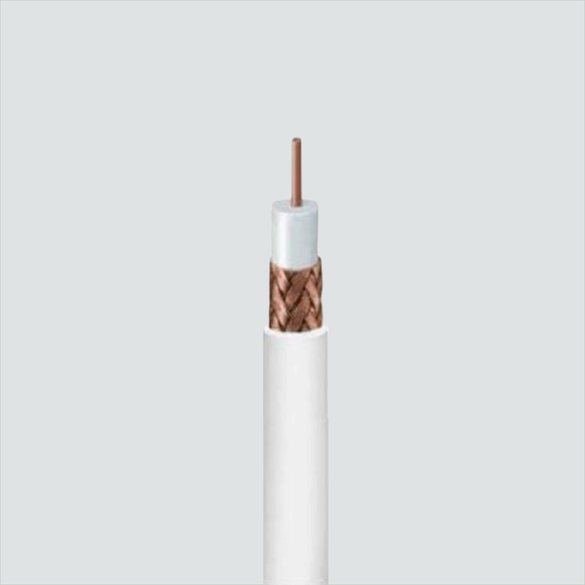

Manufacturer white RG59 cable-detail illustration for RG59PWH4. Image does not verify exact SKU, package footage, braid metallurgy or fire rating; the linked specification controls these details.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
