Wavenet RG6 Bare-Copper Quad Riser Coax, 1000 ft
Wavenet RG6 Bare-Copper Quad Riser Coax, 1000 ft
Couldn't load pickup availability
Wavenet RG6 Bare-Copper Quad Riser Coax, 1000 ft. Choose the required option above. The part-number table identifies the exact sale unit for each selection.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
Part numbers and sale units
| Selection | Part number | Quantity 1 supplies |
|---|---|---|
| Black | RG6QRBK4-BC | 1000 ft REELEX II pull box |
| White | RG6QRWH4-BC | 1000 ft REELEX II pull box |
Black — RG6QRBK4-BC specifications and image notes
Wavenet RG6QRBK4-BC is black RG-6/U quad-shield riser coaxial cable with an 18 AWG solid bare-copper center conductor, foam PE dielectric and PVC jacket. The manufacturer specifies CMR/FT4 and a 3.0 GHz sweep marking. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | RG6QRBK4-BC |
|---|---|
| Cable type | RG-6/U quad-shield coaxial (manufacturer designation) |
| Center conductor | 18 AWG solid bare copper |
| Dielectric | Foam PE |
| Braid entry | Aluminum, 60% coverage; additional braid coverage not specified |
| Jacket | PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Nominal cable diameter | 0.2716 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

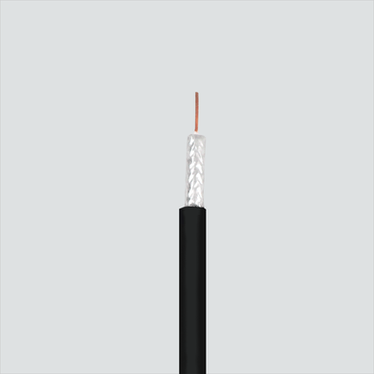

Manufacturer black coax detail associated with RG6QRBK4-BC. Illustration does not establish exact SKU, package footage, quad layers or conductor metallurgy; the linked specification controls.
White — RG6QRWH4-BC specifications and image notes
Wavenet RG6QRWH4-BC is white RG-6/U quad-shield riser coaxial cable with an 18 AWG solid bare-copper center conductor, foam PE dielectric and PVC jacket. The manufacturer specifies CMR/FT4 and a 3.0 GHz sweep marking. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | RG6QRWH4-BC |
|---|---|
| Cable type | RG-6/U quad-shield coaxial (manufacturer designation) |
| Center conductor | 18 AWG solid bare copper |
| Dielectric | Foam PE |
| Braid entry | Aluminum, 60% coverage; additional braid coverage not specified |
| Jacket | PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Nominal cable diameter | 0.2716 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

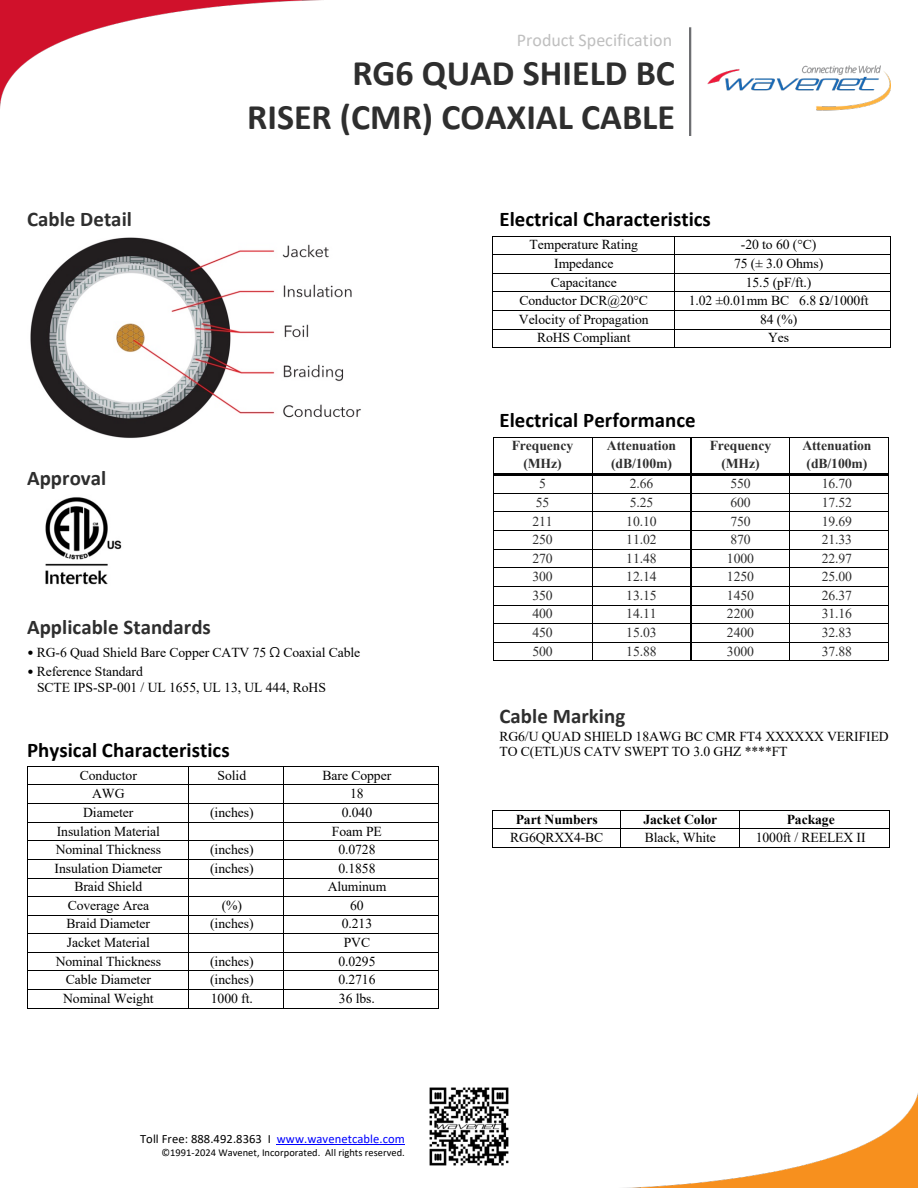

Manufacturer specification-sheet preview for selected white RG6QRWH4-BC. The drawing uses a black jacket; this document preview is not white product or package photography.
