Wavenet RG6 Dual-Shield CCS Riser Coax
Wavenet RG6 Dual-Shield CCS Riser Coax
Couldn't load pickup availability
Wavenet RG6 Dual-Shield CCS Riser Coax. Choose the required option above. The part-number table identifies the exact sale unit for each selection.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
Part numbers and sale units
| Selection | Part number | Quantity 1 supplies |
|---|---|---|
| Black / 1000 ft / Reel | RG6URBK2 | 1000 ft Reel |
| White / 1000 ft / Reel | RG6URWH2 | 1000 ft Reel |
| Black / 500 ft / REELEX II pull box | RG6URBK4-500 | 500 ft REELEX II pull box |
| White / 500 ft / REELEX II pull box | RG6URWH4-500 | 500 ft REELEX II pull box |
| Black / 1000 ft / REELEX II pull box | RG6URBK4 | 1000 ft REELEX II pull box |
| White / 1000 ft / REELEX II pull box | RG6URWH4 | 1000 ft REELEX II pull box |
Black / 1000 ft / Reel — RG6URBK2 specifications and image notes
Wavenet RG6URBK2 is black RG-6/U dual-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric, a 60% aluminum braid and a PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft Reel package.
| Manufacturer part number | RG6URBK2 |
|---|---|
| Cable type | RG-6/U dual shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| Braid shield | Aluminum, 60% coverage |
| Jacket | PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | Reel |
Manufacturer specification (PDF)
The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Contact RF-AV for current availability and lead time before time-sensitive orders.

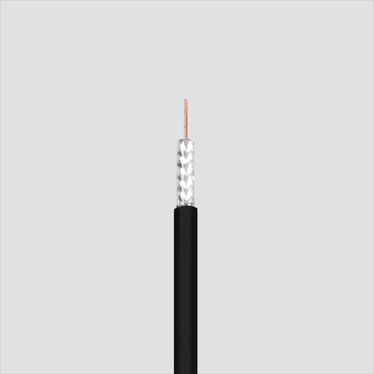

Manufacturer black coaxial cable-detail illustration for RG6URBK2, 1000 ft Reel. Image does not verify exact SKU, package footage, shield coverage or center-conductor metallurgy.
White / 1000 ft / Reel — RG6URWH2 specifications and image notes
Wavenet RG6URWH2 is white RG-6/U dual-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric, a 60% aluminum braid and a PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft Reel package.
| Manufacturer part number | RG6URWH2 |
|---|---|
| Cable type | RG-6/U dual shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| Braid shield | Aluminum, 60% coverage |
| Jacket | PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | Reel |
Manufacturer specification (PDF)
The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Contact RF-AV for current availability and lead time before time-sensitive orders.

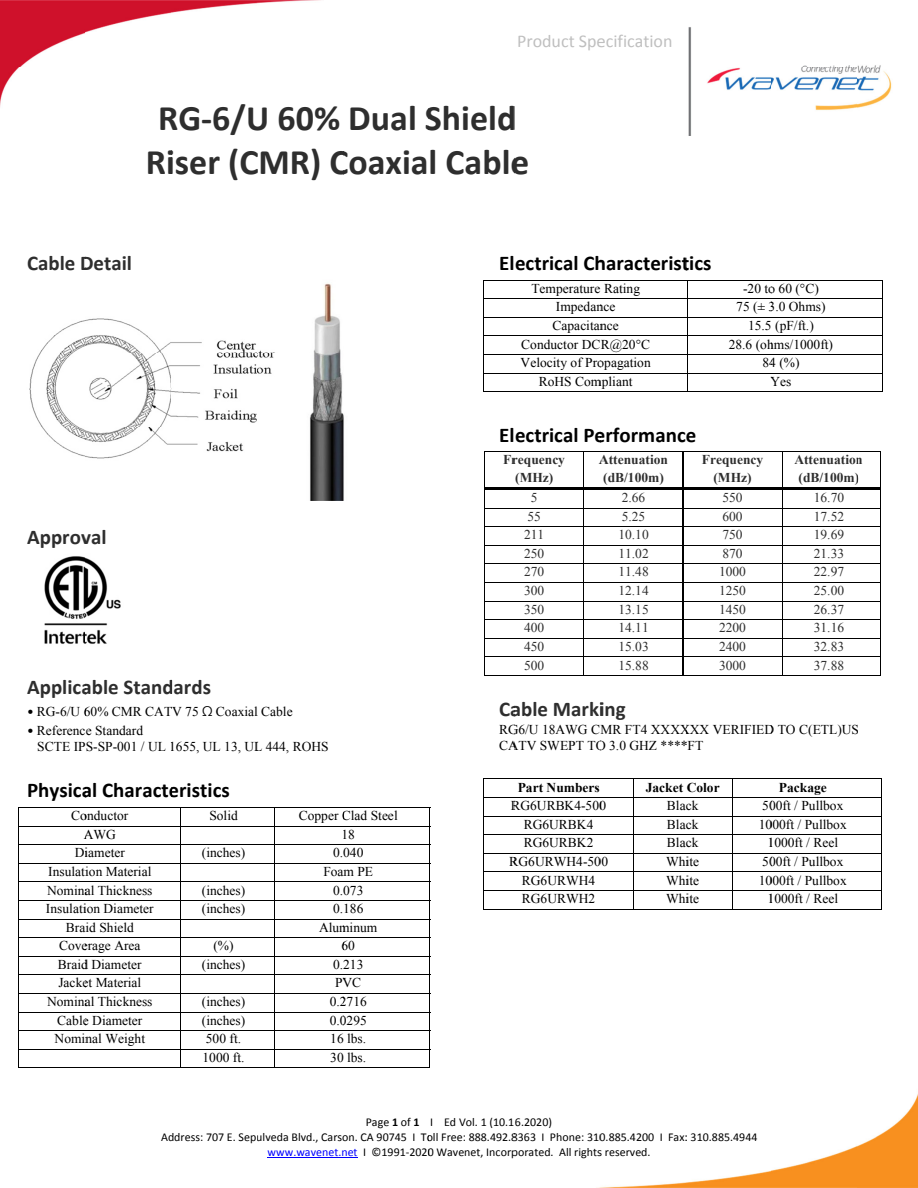

Manufacturer dual-shield CCS specification-sheet preview. Its cable illustration is black; this document preview is not a photo of the selected white cable or package. The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Black / 500 ft / REELEX II pull box — RG6URBK4-500 specifications and image notes
Wavenet RG6URBK4-500 is black RG-6/U dual-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric, a 60% aluminum braid and a PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 500 ft REELEX II pull box package.
| Manufacturer part number | RG6URBK4-500 |
|---|---|
| Cable type | RG-6/U dual shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| Braid shield | Aluminum, 60% coverage |
| Jacket | PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 500 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer black coaxial cable-detail illustration for RG6URBK4-500, 500 ft REELEX II pull box. Image does not verify exact SKU, package footage, shield coverage or center-conductor metallurgy.
White / 500 ft / REELEX II pull box — RG6URWH4-500 specifications and image notes
Wavenet RG6URWH4-500 is white RG-6/U dual-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric, a 60% aluminum braid and a PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 500 ft REELEX II pull box package.
| Manufacturer part number | RG6URWH4-500 |
|---|---|
| Cable type | RG-6/U dual shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| Braid shield | Aluminum, 60% coverage |
| Jacket | PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 500 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer dual-shield CCS specification-sheet preview. Its cable illustration is black; this document preview is not a photo of the selected white cable or package. The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Black / 1000 ft / REELEX II pull box — RG6URBK4 specifications and image notes
Wavenet RG6URBK4 is black RG-6/U dual-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric, a 60% aluminum braid and a PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft REELEX II pull box package.
| Manufacturer part number | RG6URBK4 |
|---|---|
| Cable type | RG-6/U dual shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| Braid shield | Aluminum, 60% coverage |
| Jacket | PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer black coaxial cable-detail illustration for RG6URBK4, 1000 ft REELEX II pull box. Image does not verify exact SKU, package footage, shield coverage or center-conductor metallurgy.
White / 1000 ft / REELEX II pull box — RG6URWH4 specifications and image notes
Wavenet RG6URWH4 is white RG-6/U dual-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric, a 60% aluminum braid and a PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft REELEX II pull box package.
| Manufacturer part number | RG6URWH4 |
|---|---|
| Cable type | RG-6/U dual shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| Braid shield | Aluminum, 60% coverage |
| Jacket | PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer dual-shield CCS specification-sheet preview. Its cable illustration is black; this document preview is not a photo of the selected white cable or package. The manufacturer sheet contains unresolved dimensional entries. Confirm cable diameter and connector fit with RF-AV before selecting terminations.
