Wavenet RG6 Quad-Shield CCS Riser Coax
Wavenet RG6 Quad-Shield CCS Riser Coax
Couldn't load pickup availability
Wavenet RG6 Quad-Shield CCS Riser Coax. Choose the required option above. The part-number table identifies the exact sale unit for each selection.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
Part numbers and sale units
| Selection | Part number | Quantity 1 supplies |
|---|---|---|
| Black / 1000 ft / Reel | RG6QRBK2 | 1000 ft Reel |
| White / 1000 ft / Reel | RG6QRWH2 | 1000 ft Reel |
| Black / 1000 ft / RIB (Reel-In-Box) | RG6QRBK3 | 1000 ft RIB (Reel-In-Box) |
| White / 1000 ft / RIB (Reel-In-Box) | RG6QRWH3 | 1000 ft RIB (Reel-In-Box) |
| Black / 500 ft / REELEX II | RG6QRBK4-500 | 500 ft REELEX II |
| White / 500 ft / REELEX II | RG6QRWH4-500 | 500 ft REELEX II |
| Black / 1000 ft / REELEX II | RG6QRBK4 | 1000 ft REELEX II |
| White / 1000 ft / REELEX II | RG6QRWH4 | 1000 ft REELEX II |
Black / 1000 ft / Reel — RG6QRBK2 specifications and image notes
Wavenet RG6QRBK2 is black RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft Reel package.
| Manufacturer part number | RG6QRBK2 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | Reel |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

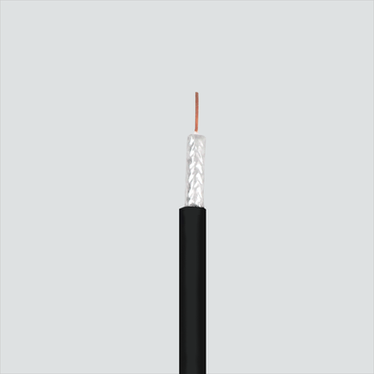

Manufacturer black RG6 cable-detail image for the quad-riser family. Selected item: RG6QRBK2, 1000 ft Reel. Image does not verify exact label, package footage, four shield layers or center-conductor metallurgy.
White / 1000 ft / Reel — RG6QRWH2 specifications and image notes
Wavenet RG6QRWH2 is white RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft Reel package.
| Manufacturer part number | RG6QRWH2 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | Reel |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

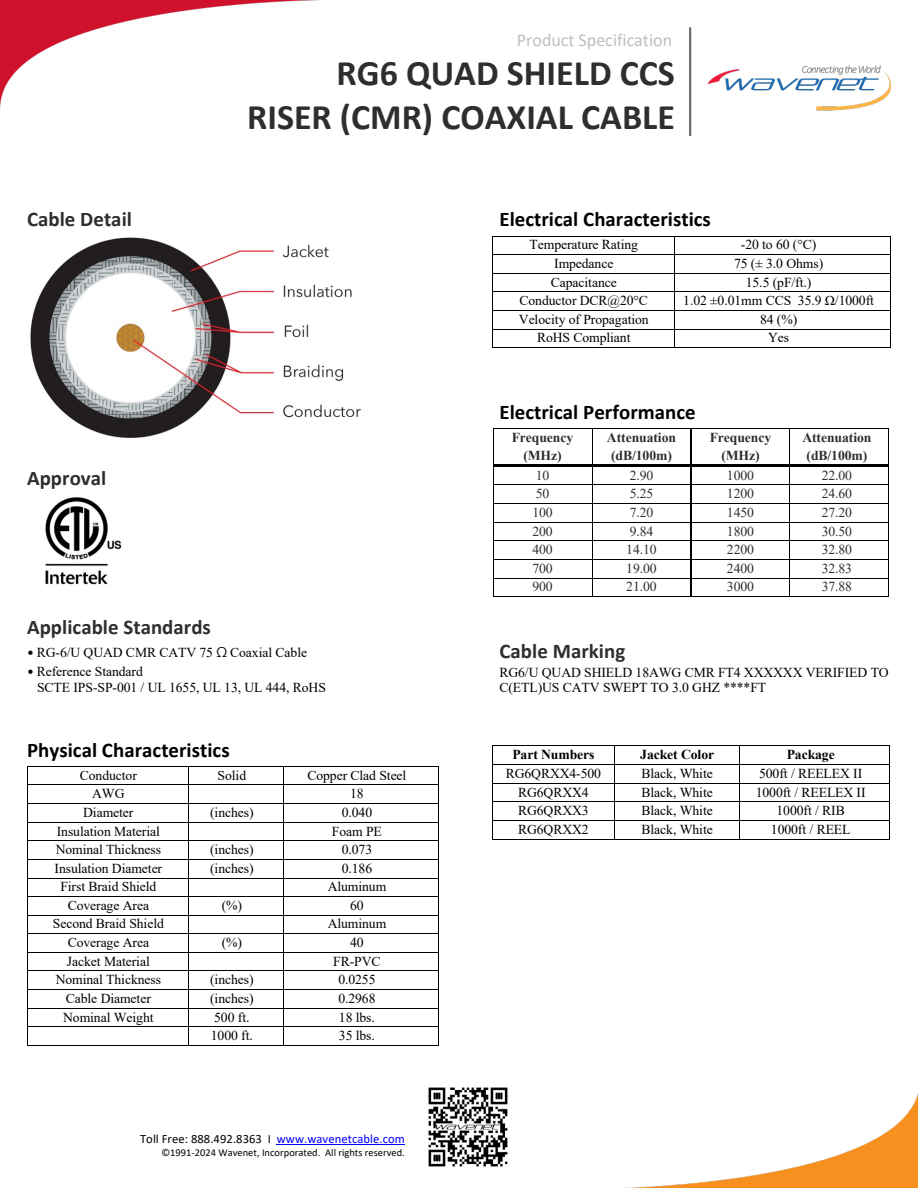

Manufacturer RG6 quad-riser specification-sheet preview. The diagram depicts a black jacket; this is a family document preview, not a photograph of the selected white cable or package.
Black / 1000 ft / RIB (Reel-In-Box) — RG6QRBK3 specifications and image notes
Wavenet RG6QRBK3 is black RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft RIB (Reel-In-Box) package.
| Manufacturer part number | RG6QRBK3 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | RIB (Reel-In-Box) |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer black RG6 cable-detail image for the quad-riser family. Selected item: RG6QRBK3, 1000 ft RIB (Reel-In-Box). Image does not verify exact label, package footage, four shield layers or center-conductor metallurgy.
White / 1000 ft / RIB (Reel-In-Box) — RG6QRWH3 specifications and image notes
Wavenet RG6QRWH3 is white RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft RIB (Reel-In-Box) package.
| Manufacturer part number | RG6QRWH3 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | RIB (Reel-In-Box) |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer RG6 quad-riser specification-sheet preview. The diagram depicts a black jacket; this is a family document preview, not a photograph of the selected white cable or package.
Black / 500 ft / REELEX II — RG6QRBK4-500 specifications and image notes
Wavenet RG6QRBK4-500 is black RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 500 ft REELEX II package.
| Manufacturer part number | RG6QRBK4-500 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 500 ft |
| Packaging | REELEX II |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer black RG6 cable-detail image for the quad-riser family. Selected item: RG6QRBK4-500, 500 ft REELEX II. Image does not verify exact label, package footage, four shield layers or center-conductor metallurgy.
White / 500 ft / REELEX II — RG6QRWH4-500 specifications and image notes
Wavenet RG6QRWH4-500 is white RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 500 ft REELEX II package.
| Manufacturer part number | RG6QRWH4-500 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 500 ft |
| Packaging | REELEX II |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer RG6 quad-riser specification-sheet preview. The diagram depicts a black jacket; this is a family document preview, not a photograph of the selected white cable or package.
Black / 1000 ft / REELEX II — RG6QRBK4 specifications and image notes
Wavenet RG6QRBK4 is black RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft REELEX II package.
| Manufacturer part number | RG6QRBK4 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | Black |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | REELEX II |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer black RG6 cable-detail image for the quad-riser family. Selected item: RG6QRBK4, 1000 ft REELEX II. Image does not verify exact label, package footage, four shield layers or center-conductor metallurgy.
White / 1000 ft / REELEX II — RG6QRWH4 specifications and image notes
Wavenet RG6QRWH4 is white RG-6/U quad-shield riser coaxial cable for CATV signal distribution. It uses an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and an FR-PVC jacket. The manufacturer specifies 75-ohm nominal impedance, CMR marking and a sweep to 3.0 GHz. Supplied in one 1000 ft REELEX II package.
| Manufacturer part number | RG6QRWH4 |
|---|---|
| Cable type | RG-6/U quad shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| First braid | Aluminum, 60% coverage |
| Second braid | Aluminum, 40% coverage |
| Jacket | FR-PVC |
| Jacket color | White |
| Rating | CMR / FT4 |
| Impedance | 75 ± 3 ohms |
| Cable diameter | 0.2968 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | REELEX II |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer RG6 quad-riser specification-sheet preview. The diagram depicts a black jacket; this is a family document preview, not a photograph of the selected white cable or package.
