Wavenet RG6OSPBK2 RG6 Dual-Shield Outdoor Coax, 1000 ft
Wavenet RG6OSPBK2 RG6 Dual-Shield Outdoor Coax, 1000 ft
Couldn't load pickup availability
Wavenet RG6OSPBK2 is black RG-6/U dual-shield coaxial cable with an 18 AWG solid copper-clad steel center conductor, foam PE dielectric and polyethylene jacket. The manufacturer designates it UV-rated outdoor/direct-burial cable and marks it swept to 3.0 GHz. Supplied in one 1000 ft reel.
| Manufacturer part number | RG6OSPBK2 |
|---|---|
| Cable type | RG-6/U dual shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam PE |
| Braid shield | Aluminum, 60% coverage |
| Jacket | Polyethylene |
| Jacket color | Black |
| Installation designation | UV-rated outdoor / direct burial (manufacturer marking) |
| Impedance | 75 ± 3 ohms |
| Nominal cable diameter | 0.2716 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | Reel |
Manufacturer specification (PDF)
Confirm installation requirements, terminations, availability and lead time with RF-AV before ordering.

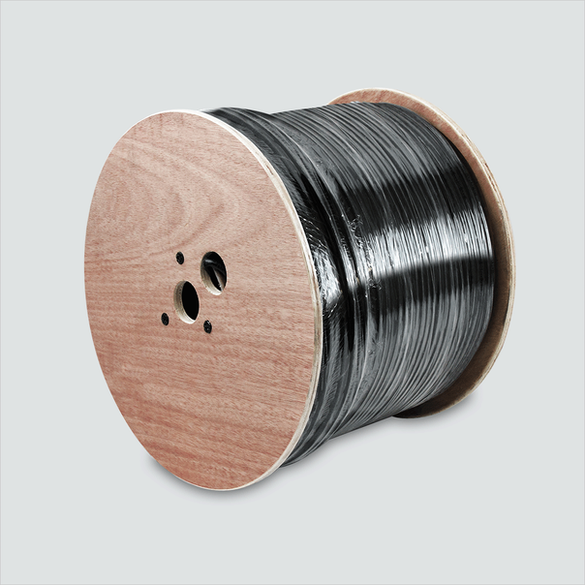

Manufacturer family image of a black cable reel associated with RG6OSPBK2. The image does not verify exact SKU, footage, shield count or jacket marking; the linked specification controls these details.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
