Wavenet
Wavenet RG6QPWH4 White RG6 Quad Plenum Coax, 1000 ft
Wavenet RG6QPWH4 White RG6 Quad Plenum Coax, 1000 ft
Couldn't load pickup availability
Wavenet RG6QPWH4 is white RG-6/U quad-shield plenum coaxial cable with an 18 AWG solid copper-clad steel (CCS) center conductor, foam FEP dielectric and plenum-polymer jacket. Its shielding combines two aluminum/poly foil layers with 60% and 40% aluminum braids. The manufacturer specifies CMP/FT6 and a 3.0 GHz sweep marking. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | RG6QPWH4 |
|---|---|
| Cable type | RG-6/U quad-shield coaxial |
| Center conductor | 18 AWG solid copper-clad steel (CCS) |
| Dielectric | Foam FEP |
| Inner foil | Aluminum / poly tape |
| Inner braid | Aluminum, 60% coverage |
| Outer foil | Aluminum / poly tape |
| Outer braid | Aluminum, 40% coverage |
| Jacket | Plenum polymer |
| Jacket color | White |
| Rating | CMP / FT6 |
| Impedance | 75 ± 3 ohms |
| Nominal cable diameter | 0.260 in |
| Manufacturer sweep marking | 3.0 GHz |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

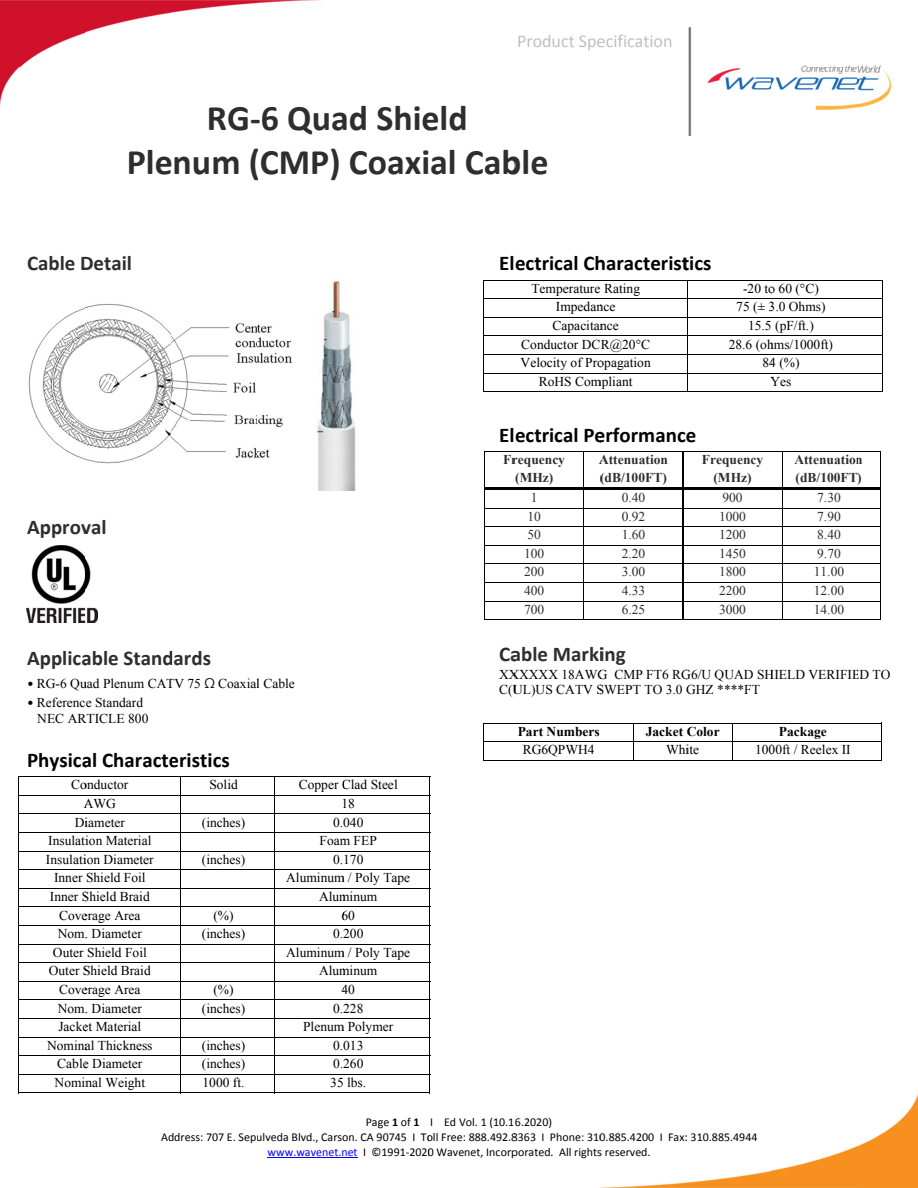

Manufacturer specification-sheet preview for white RG6QPWH4; includes a cable illustration and exact package row. This is a document preview, not exact product or package photography.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
