Wavenet 22/2 Stranded Riser Security Cable
Wavenet 22/2 Stranded Riser Security Cable
Couldn't load pickup availability
Wavenet SC2202RXX-S is 22 AWG 2-conductor stranded bare copper security cable with unshielded construction, PVC insulation and a PVC jacket. Intended for security and control wiring installations appropriate to its CMR rating. Each conductor uses seven strands.

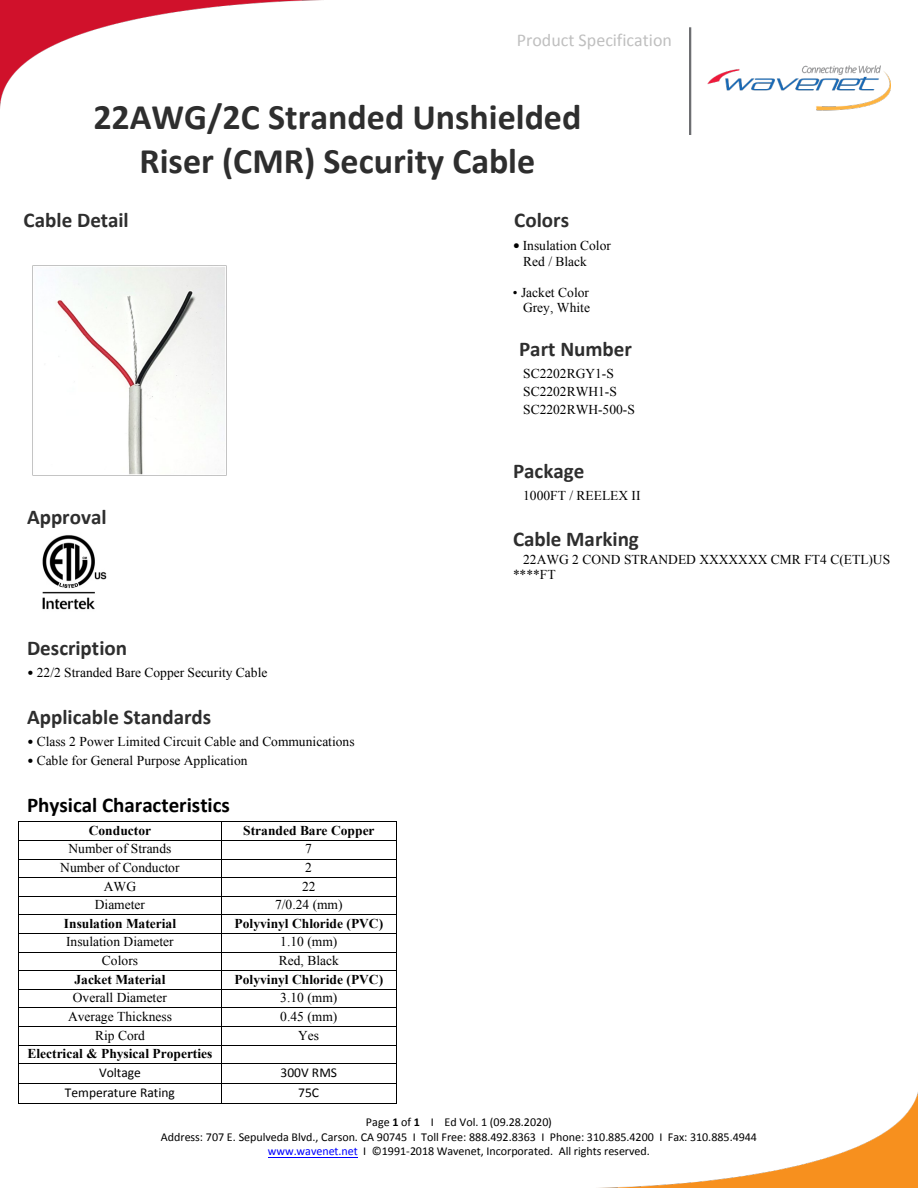

Manufacturer specification-sheet preview for the 22/2 stranded riser family. The sheet includes a white cable illustration; this is a document preview, not a photograph of the selected jacket color or package.
Price is for one selected package. Choose the jacket color and length/package; each part number below identifies the exact sale unit.
Part numbers and sale units
| SC2202RGY1-S | Grey · 1000 ft · REELEX II pull box |
|---|---|
| SC2202RWH1-S | White · 1000 ft · REELEX II pull box |
Specifications
| Conductor size | 22 AWG |
|---|---|
| Conductors | 2 |
| Conductor material | Bare copper |
| Construction | Stranded, unshielded |
| Strands per conductor | 7 |
| Insulation | PVC |
| Jacket | PVC |
| Manufacturer cable marking | CMR / FT4 |
| Outer diameter | 3.10 mm |
| Ripcord | Yes |
| Conductor colors | Red / Black |
CMR / FT4 are manufacturer cable markings. Confirm the applicable installation requirements. The linked manufacturer sheet is edition 09.28.2020.
Manufacturer family page · SC2202RXX-S manufacturer specification (PDF) · Request a quote · Browse Wavenet catalog
Supplier-order item. Contact RF-AV to confirm availability, lead time and delivery arrangements for time-sensitive orders.
