Wavenet SC2206SRWH1-S 22/6 Shielded CMR Cable, White, 1000ft

Wavenet SC2206SRWH1-S is white 22AWG, six-conductor shielded security cable for alarm keypads, motion detectors, security contacts and compatible low-voltage control circuits. It is supplied as one 1,000-foot pull box using REELEX II packaging.

Each conductor uses seven strands of bare copper with PVC insulation. The cable includes aluminum-Mylar foil shielding, a 24AWG tinned-copper drain wire, PE tape and a ripcord under a flame-retardant PVC jacket.

The exact manufacturer specification identifies CMR riser construction, a nominal 0.163-inch (4.14mm) outer diameter, 300V RMS rating and a -20°C to 75°C temperature range. Select terminations and routing for the equipment requirements and actual cable diameter; use the equipment manufacturer’s shield-termination instructions.

Sale unit: one 1,000-foot white box. Confirm current supplier availability and lead time for time-sensitive projects.

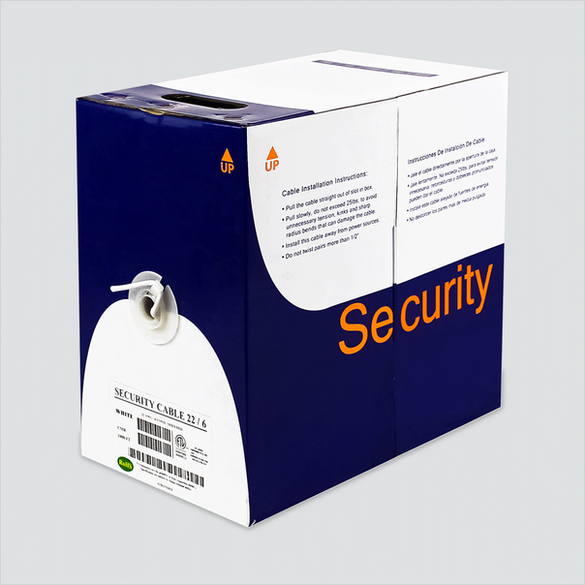

Manufacturer packaging view for 22/6 security cable. Exact part number and length are verified from the selected manufacturer record and specification; the pictured carton is not an RF-AV stock photograph.

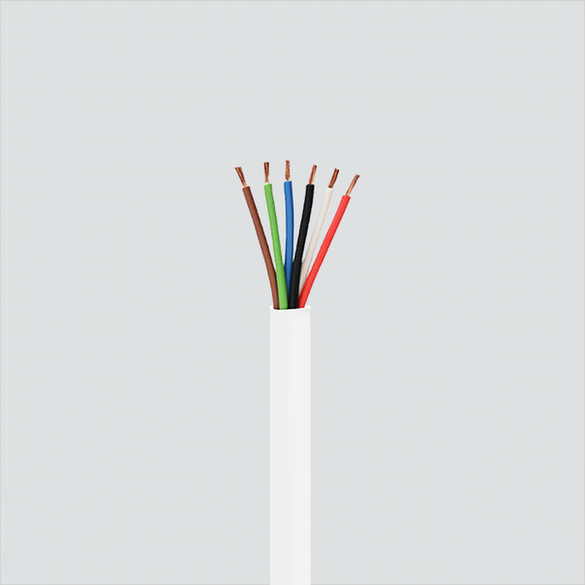

Manufacturer illustration of a white jacket and six colored conductors. The foil shield and drain wire are not exposed in this simplified view; their construction is specified in the linked datasheet.

Wavenet SC2206SRWH1-S specification (PDF).

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
