Wavenet WC Series Swing-Out Wall Cabinets

$237.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Cabinet size 6U / CBTF-WM6U 9U / CBTF-WM9U 12U / CBTF-WM12U 15U / CBTF-WM15U 18U / CBTF-WM18U

Quantity

Wavenet WC Series wall cabinets provide rear swing-out access for network equipment in wiring closets and spaces where floor space matters. Choose the cabinet size and exact model above. Each sale includes one fully assembled wall cabinet with a reversible tempered-glass front door.

Shared features

Sale unit	One fully assembled wall cabinet
Configuration	Double-section swing-out rear access
Nominal depth	24 inches
Manufacturer usable depth	18 inches
Doors and panels	Reversible tempered-glass front door; lockable front, rear and removable side panels
Cooling	One preinstalled fan and one empty slot for an additional fan
Cable entry	Top and bottom knockouts
Grounding provision	Integrated ground point

Model-specific dimensions and hardware

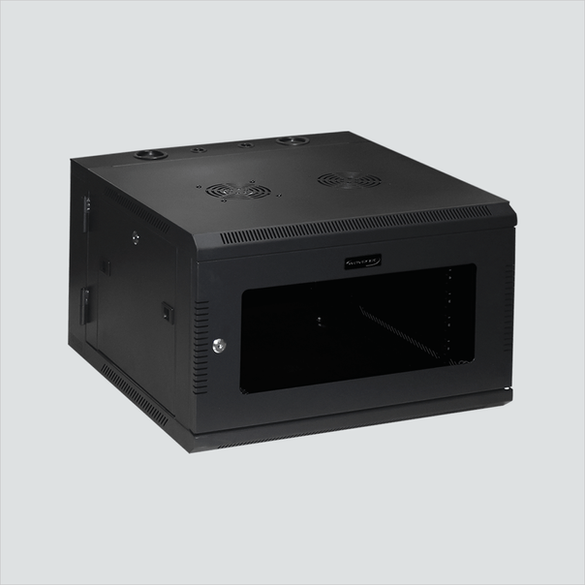

CBTF-WM6U — 6U

Manufacturer-listed cabinet dimensions: 23.6 W × 14.6 H × 23.6 D inches
Equipment rails: Two numbered, depth-adjustable rails; documented thread options: #12-24 or #10-32
Wall mounting: Two sets of 16-inch on-center mounts
Manufacturer-listed included hardware: One mounting-hardware pack with two keys.

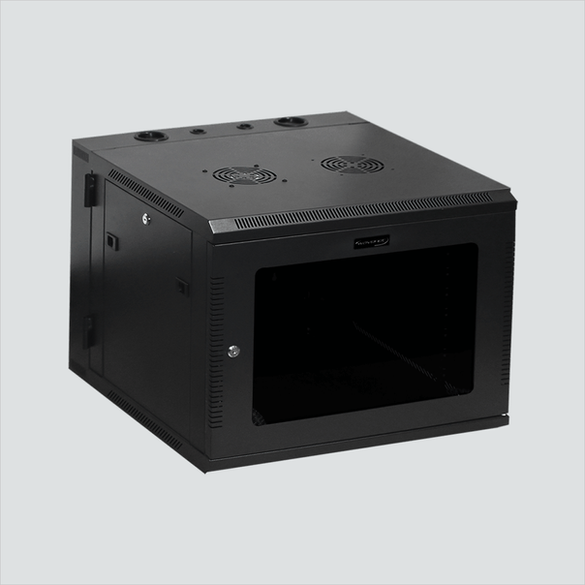

CBTF-WM9U — 9U

Manufacturer-listed cabinet dimensions: 23.6 W × 19.8 H × 23.6 D inches
Equipment rails: Two numbered, depth-adjustable rails; documented thread options: #12-24 or #10-32
Wall mounting: Two sets of 16-inch on-center mounts
Manufacturer-listed included hardware: One mounting-hardware pack with two keys.

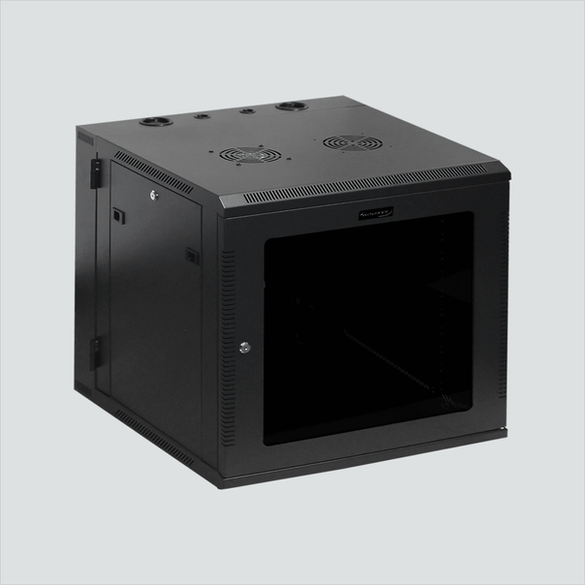

CBTF-WM12U — 12U

Manufacturer-listed cabinet width and depth: 23.6 W × 23.6 D inches
Equipment rails: Two numbered, depth-adjustable rails; documented thread options: #12-24 or #10-32
Wall mounting: 16-inch on-center mounting provision
Manufacturer-listed included hardware: One mounting-hardware pack with two keys.

Confirm overall cabinet height for a clearance-sensitive installation.

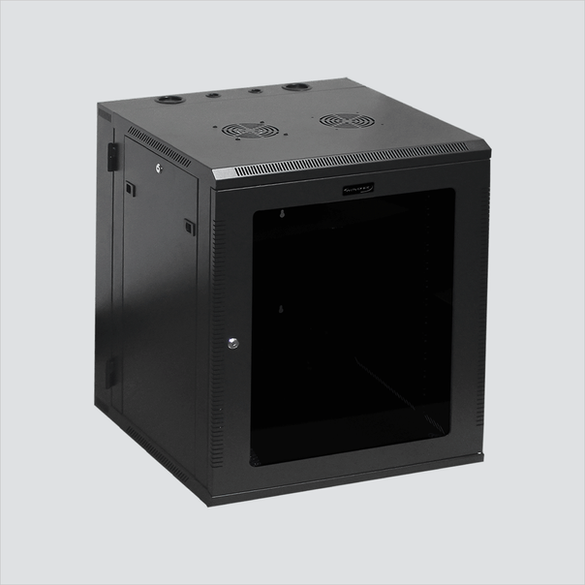

CBTF-WM15U — 15U

Manufacturer-listed cabinet dimensions: 23.6 W × 30.3 H × 23.6 D inches
Equipment rails: Two numbered, depth-adjustable equipment rails. The model-specific Wavenet specification lists #12-24 threaded rails; WC Series documentation also lists #10-32 options. Confirm the supplied rail thread before selecting rack screws.
Wall mounting: 16-inch on-center mounting provision
Manufacturer-listed included hardware: One mounting-hardware pack with two keys.

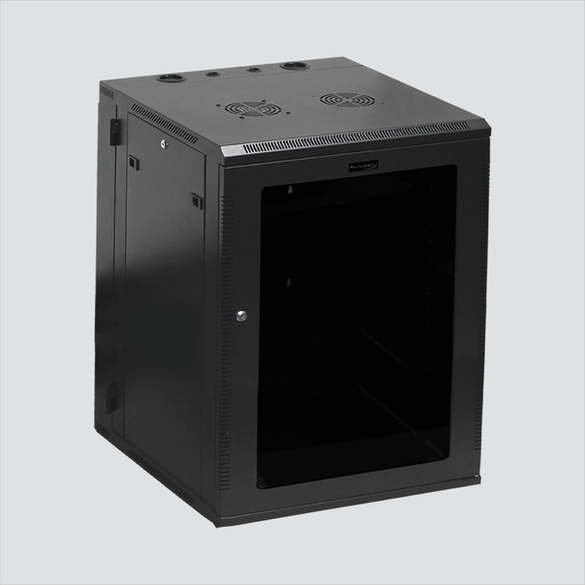

CBTF-WM18U — 18U

Manufacturer-listed cabinet dimensions: 23.6 W × 35.6 H × 23.6 D inches
Equipment rails: Two numbered, depth-adjustable rails; documented thread options: #12-24 or #10-32
Wall mounting: 16-inch on-center mounting provision
Included hardware: Mounting hardware with keys; exact supplied contents depend on configuration

The manufacturer-linked specification below names CBTF-WM18U-1032. It does not confirm the supplied rail thread or hardware contents for the base CBTF-WM18U model.

Installation and configuration

Match the supplied rail thread, equipment depth and cable clearance to your installation. Allow room for rear swing-out access. Confirm the applicable load rating, wall construction and mounting hardware before installation. Nominal and usable depth describe different dimensions.

For a specific rail configuration or powered fan connection, request the applicable supplied configuration before ordering. Manufacturer-listed hardware contents are document statements; confirm supplied contents for configuration-specific requirements. Application equipment and extra fans are not included unless separately specified.

Manufacturer images are associated with the named cabinet models. Each sale includes one fully assembled cabinet. Product appearance does not identify the supplied rail thread or hardware contents; equipment in application illustrations is not included.
