Wavenet WL-FT9012-BK 12-Inch Horizontal Radius Bend

Wavenet WL-FT9012-BK is a 12-inch-wide horizontal radius bend for cable ladder runway. It creates a 90-degree sweep in the horizontal plane.

The tubular steel side rails measure 1-1/2 x 3/8 inch with a 0.06-inch wall. The rungs use 1 x 1/2-inch tubular steel with a 0.06-inch wall. One Single Pack contains one bend.

The manufacturer describes installation using butt-splice kits. Confirm the required splice and support hardware separately. Review the runway geometry and each cable manufacturer’s minimum bend radius before specifying the installation; no numeric bend radius or load rating is stated.

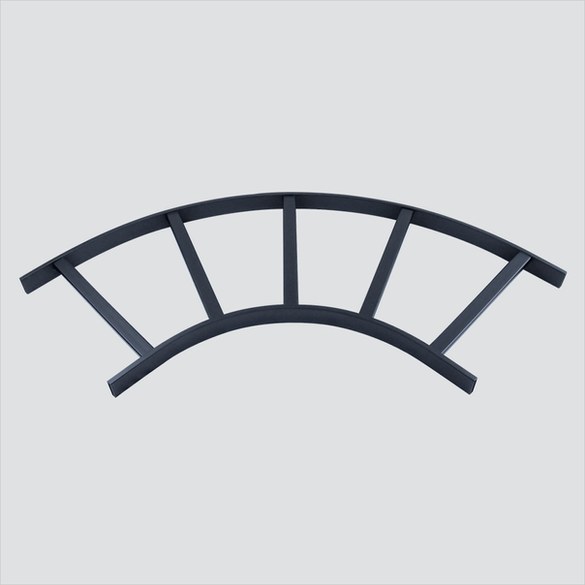

Manufacturer view of one horizontal bend, shown in black. Splice kits and mounting hardware are not pictured or promised included. Width, sweep and tube dimensions are sourced from the exact product page and specification, not measured from the image.

Confirm current supplier availability and lead time for time-sensitive projects.

Wavenet WL-FT9012-BK horizontal bend specification (PDF).

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
