Wavenet WL-IR9012-BK 12-Inch Universal Radius Bend

Wavenet WL-IR9012-BK is a 12-inch-wide universal radius bend for cable ladder runway. It changes a vertical cable run to a horizontal direction, or vice versa, and can be oriented as an inside or outside bend. The manufacturer drawings show a 90-degree transition.

The tubular steel side rails measure 1-1/2 x 3/8 inch with a 0.06-inch wall. Rungs use 1 x 1/2-inch tubular steel with a 0.06-inch wall. One Single Pack contains one bend.

The manufacturer describes installation using a butt-splice kit. Confirm required splice and support hardware separately. Review actual runway geometry and each cable manufacturer’s minimum bend radius before specifying the installation; no numeric bend radius or load rating is stated.

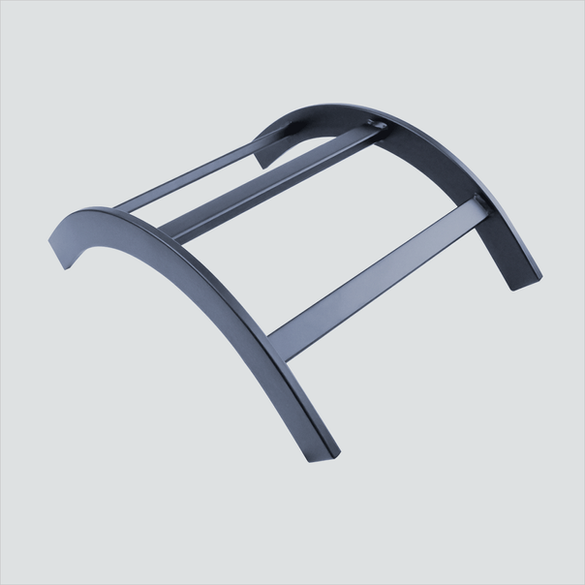

Manufacturer view of one universal bend, shown in black. The specification illustrates inside and outside use of the same bend. Splice kits and mounting hardware are not pictured or promised included.

Confirm current supplier availability and lead time for time-sensitive projects.

Wavenet WL-IR9012-BK universal radius bend specification (PDF).

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
