Wavenet WL-LR1210-BK 10ft x12in Ladder Cable Runway
Wavenet WL-LR1210-BK 10ft x12in Ladder Cable Runway
Couldn't load pickup availability
Wavenet WL-LR1210-BK provides an open ladder pathway for horizontal cable routing. Each Single Pack contains one individually boxed straight runway section.
The nominal size is 10 ft long by 12 in wide. The manufacturer drawing shows a 119 in section length; use the drawing dimension when planning clearances.
| Manufacturer part number | WL-LR1210-BK |
|---|---|
| Sale unit | Single Pack: one individually boxed straight runway section |
| Nominal size | 10 ft long x 12 in wide |
| Drawing length | 119 in; nominal 10 ft product designation |
| Stringer construction | Steel tube, 1-1/2 in x 3/8 in, 0.060 in wall |
| Cross members | 1 in x 1/2 in; welded on 9 in centers |
| Application | Support for horizontal cable runs |

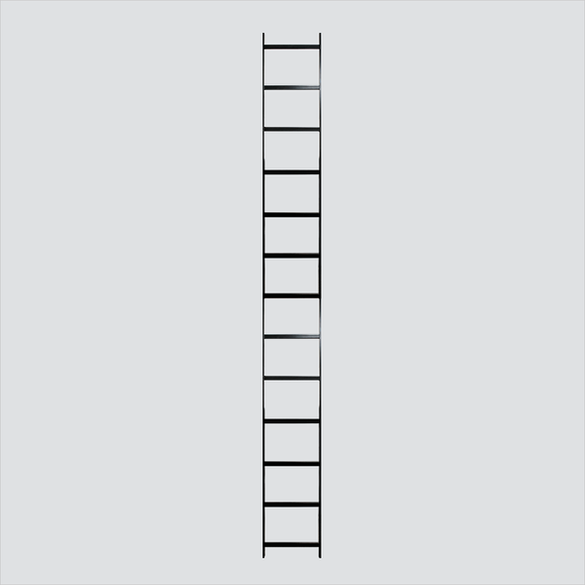

Manufacturer illustration of the runway section; dimensions are specified in the product details and drawing. Mounting supports and accessories are not pictured.
Select project-appropriate supports and joining accessories separately after checking the mounting arrangement. This listing covers the runway section. Confirm current supplier availability, lead time and freight for time-sensitive projects.
Wavenet WL-LR1210-BK product information and dimensional drawing (PDF)
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
