Wavenet WL-RA5LB-BK Cable Runway L-Bracket Kit

Wavenet WL-RA5LB-BK is a runway-mounted L bracket that provides a separate cable-support track alongside the main ladder run. Each Single Pack contains one bracket with mounting hardware.

The bracket is made from 3/16-inch steel and is intended for 1-1/2-inch by 3/8-inch tubular or solid runway rails. The manufacturer specifies included 1/4-20 mounting hardware. Review the drawing and actual rail profile before installation.

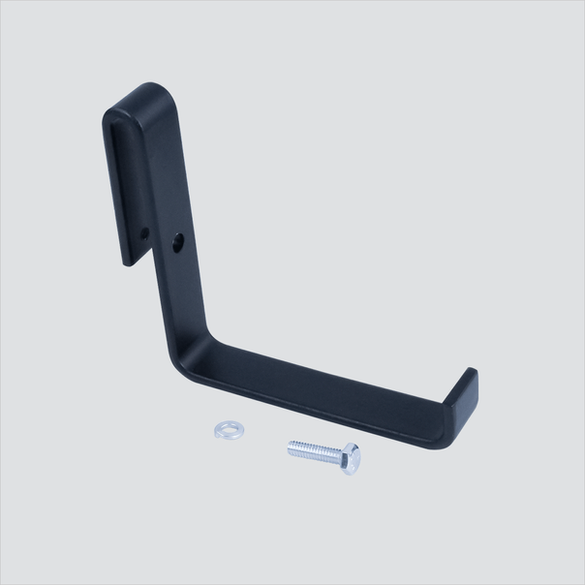

Manufacturer component view. The specification includes 1/4-20 mounting hardware; the image does not establish an exact fastener inventory, bolt length or grade. Cable runway is not pictured.

Confirm current supplier availability and lead time for time-sensitive projects.

Wavenet WL-RA5LB-BK runway L-bracket specification (PDF). The illustrated runway shows application context.

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.

Browse the Wavenet catalog | Discuss project quantities
