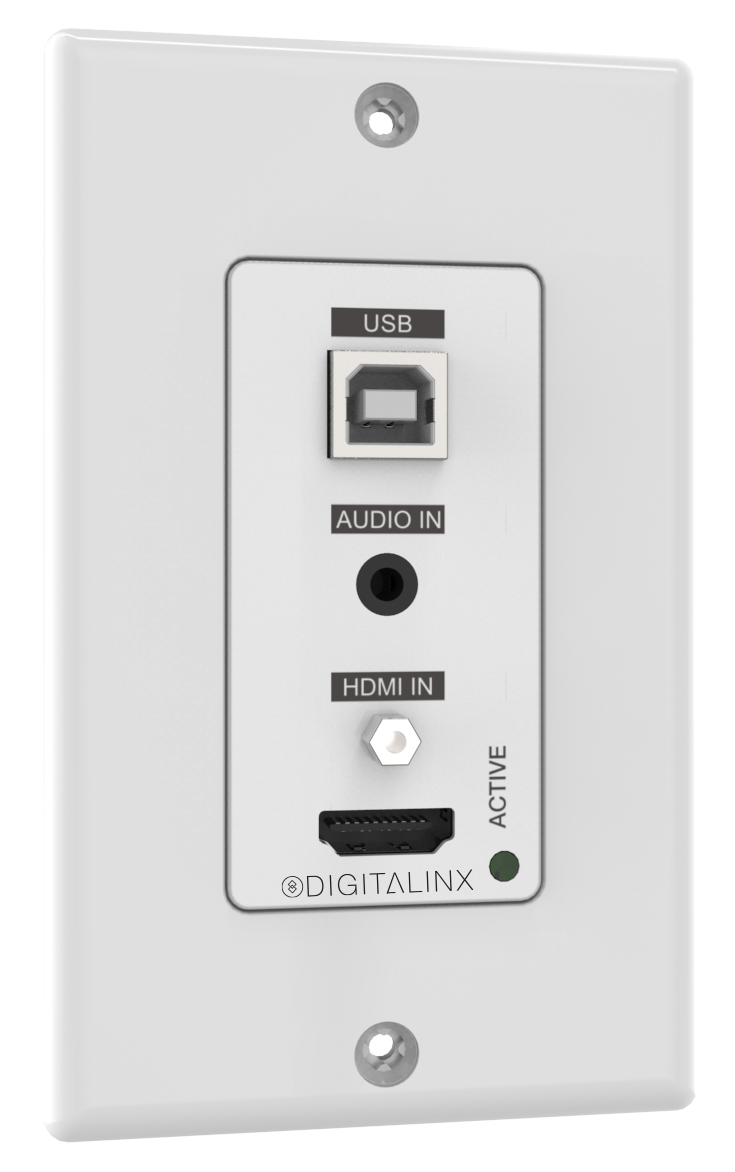

Digitalinx by Liberty AV Solutions DL-1H1A1U-WPKT-W HDBaseT

Wall Plate HDMI, Audio, and USB extender set with box style receiver

The Digitalinx DL-1H1A1U-WPKT-W HDBaseT 2.0 extender set transmits HDMI, audio , USB High Speed (up to 190Mbps) and RS232 over single category 6 twisted pair cable. The DL-1H1A1U-WPKT-W can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 40m / 120’ and 1080P up to 70m / 230’. The audio circuit is completely separate and is not dependent on the HDMI or USB input source to be active. The Digitalinx DL-1H1A1U-WPKT-W is HDMI 1.4b and HDCP 2.2 compliant and supports CEC pass through.

The DL-1H1A1U-WPKT-W HDBaseT receiver powers wall plate transmitter via HDBaseT so there is no need for an external power supply for the wall plate.

The DL-1H1A1U-WPKT-W is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.

Features and Benefits

• HDMI , 3.5mm audio, USB-B 2.0 High Speed Extender Set
• Supports Video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
• Pass-Through 3.5mm analog audio passes audio independent of HDMI port
• Extend USB 2.0 High Speed up to 190Mbps
• Receiver features HDMI output, 3.5mm audio output, and 2 USB-A ports
• Supports HDCP 2.2 and HDCP 1.4 compliant
• Supports all HDMI audio formats
• Single cable 40m for 4K / 70m for 1080P
• RS232 & CEC pass-through
• Dedicated 3.5mm audio independent from the HDMI signal
• Remote power from Receiver to wall plate transmitter
• TX is standard US 1-Gang Decorator format

Applications

• Extend HDMI source, USB2.0 High SPeed, and Audio Source at the same time or independently
• Extension of HDMI, 3.5mm Audio, USB2.0 High Speed Signals
• Education, K-12, Commercial Video, Residential

Supporting Documents

Recommended Cabling

In-Wall/Between Wall Plate and receiver box

254246AF West Penn Certified HDBaseT CAT 6A

HDMI Cables Z100HDE(length) 3 ft to 25 ft

https://rf-av.com/search?q=Z100HDE*

USB 2.0 Cables

Device to Wall Plate

https://rf-av.com/search?q=E-USBAB

Receiver to whiteboard/camera/device (if cable does not exist)

https://rf-av.com/search?q=E-USBAA

3.5mm Audio Cable

https://rf-av.com/search?q=cmm-

Contact Us For Special Pricing
