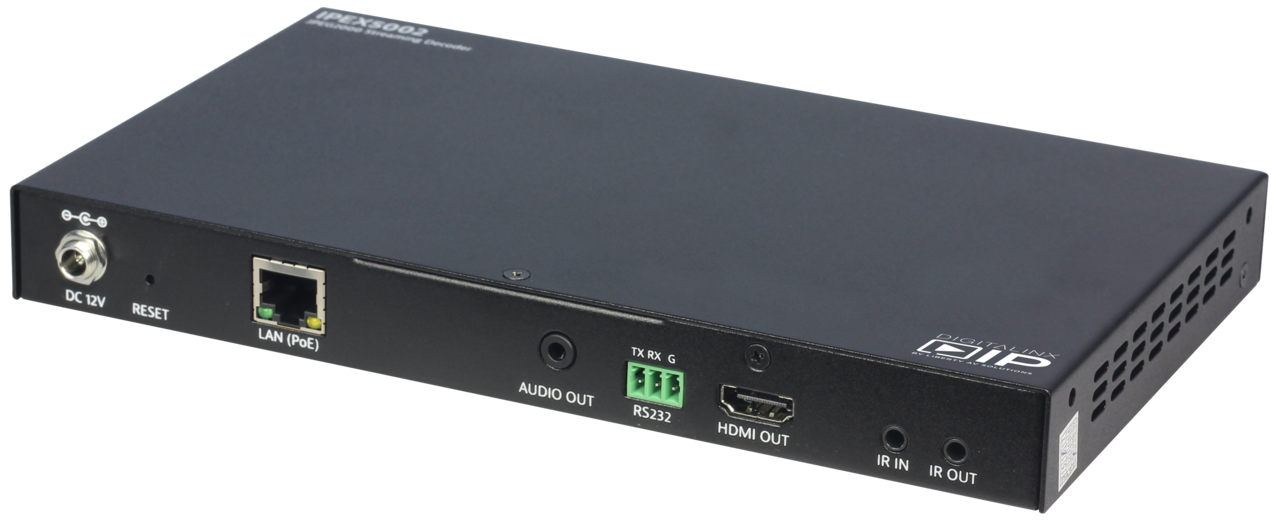

Digitalinx-IP 4K HDMI Over IP Decoder - IPEX5002

The Digitalinx IP IPEX5002 receives HDMI video and audio over a gigabit IP network using JPEG2000 encoding with a variable data rate at an average of 250Mbps with peak values up to 850Mbps. The IPEX5002 supports video signals up to 4K at 30 Hz 4:4:4 with HDCP 2.2 and 7.1 multichannel audio. Using a 48 port gigabit switch, up to 45 decoders may be used to create an incredible matrix or distribution system within a single installation. Depending on the needs of the installation, multiple IPEX5002 devices can be configured to make a video wall up to a 16x16 configuration. An analog audio output port de-embeds the audio from the HDMI content, while still passing the audio to the HDMI output.

The IPEX5002 supports PoE and can be powered remotely by compatible power source equipment, such as a PoE Ethernet switch, eliminating the need for a nearby power outlet. The RS232 port relays commands from the IP controller and operates in a pass-through capacity to control a third party device such as a projector. The USB connection passes keyboard and mouse signals from the IPEX5002 decoder to the IPEX5001 encoder.

The IPEX5001 requires a single IPEX5002 for a point to point installation. When multiple IPEX5001 and/or IPEX5002 devices are in a system, an IPEXCB control box will be required.

Contact Us for System Design Help

IPEX5002 Features and Benefits

• HDMI video and audio over a gigabit IP network using JPEG2000 encoding
• Video signals up to 4K @60Hz 4:2:0 with HDCP 2.2 and 7.1 multichannel audio
• Supports HDR
• Analog audio output port de-embeds the audio from the HDMI signal
• Supports PoE and can be powered remotely
• RS232 port relays commands from the IP controller and operates in a pass-through capacity
• IR in and out for 2 way IR control
• USB connection passes keyboard and mouse signals from decoder to encoder
• Integrated scaler with up & down scaling capability up to 4K30 4:4:4
• Downscaling ability allows lower resolution displays to show 4k content
• Supports Video walls up to 16x16 with Bezel Compensation
• Free 3rd party control drivers available for download

IPEX5002 Applications

• Video Distribution, Digital Signage, Residential, Restaurant, Bar, Entertainment, Hospitality
• Large Scale HDMI distribution
• Video Wall
• 4K Distribution

Package Contents per Device

1. Installation Guide
2. Power Supply with US, UK, EU, and AU adapters
3. 3-pin Removable Screw Terminal
4. Mounting Ears (2 ea)
5. IR Emitter
6. IR Receiver
