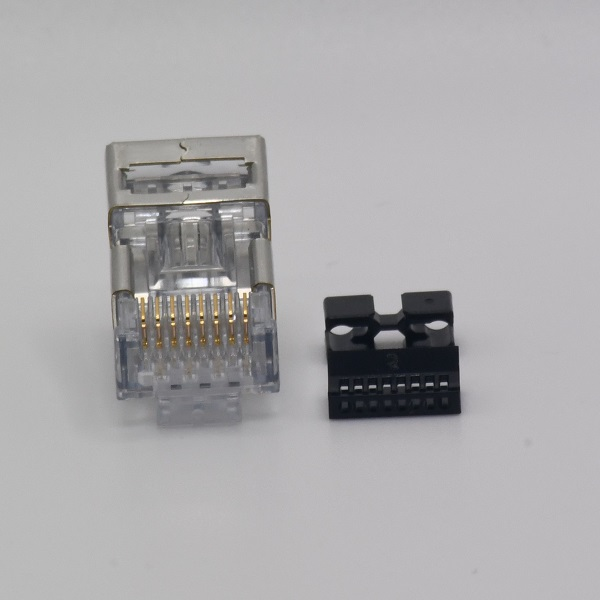

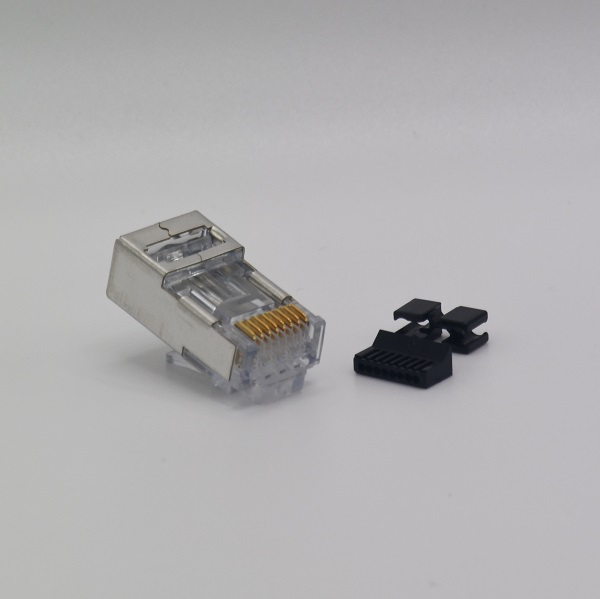

Sentinel 111S08080095LA4 is a shielded RJ45 plug for stranded-wire Cat 6 and Cat 6A patch-cord applications. Its dual load-bar system aligns the eight conductors and separates the pairs during termination. Select it by the exact cable construction, insulated conductor diameter and jacket retention requirements.
Pack size: 100 plugs per bag. Crimp tool, cable and optional boots are sold separately.
Availability: Contact RF-AV for availability and current lead time.
Technical specifications
| Manufacturer / part number | Sentinel Connector Systems / 111S08080095LA4 |
|---|---|
| Selling unit | 100-piece bag |
| Connector | Shielded 8-position, 8-contact RJ45 modular plug; straight cable entry |
| Intended applications | Cat 6 / Cat 6A patch-cord termination, subject to cable selection and assembly quality |
| Conductor construction | Stranded only; not for solid conductors |
| Insulated conductor diameter | 0.037–0.042 in (0.940–1.067 mm) |
| Wire gauge selection | Qualify the exact stranded construction and insulation diameter; AWG alone does not establish fit |
| Load-bar system | Dual matched Sentinel load bars for conductor alignment and pair separation |
| Cable / jacket selection | Round cable. Verify jacket retention and shield contact for the actual cable; the drawing does not specify a universal jacket-diameter range |
| Strain relief | Internal jacket-retention latch; optional external boot is separate |
| Plug-body dimensions | 0.900 in long × 0.460 in wide × 0.312 in body height (22.86 × 11.68 × 7.92 mm); body height excludes the projecting latch |
| Housing | Polycarbonate |
| Contact material | 0.012 in (0.305 mm) phosphor bronze |
| Contact finish | 50 µin (1.27 µm) selective gold in the contact area over at least 100 µin (2.54 µm) nickel |
| Shield material | 0.012 in (0.305 mm) CDA-260 quarter-hard brass |
| Shield finish | Tin plating, 100–150 µin (2.54–3.81 µm) |
| Operating temperature | −40°C to +85°C (−40°F to +185°F) |
| Mating life | 1,000 insertion/extraction cycles |
| Contact resistance | 10 mΩ maximum |
| Electrical rating | 30 VAC / 57 VDC at 1.5 A |
| Material flammability | 94V-0; manufacturer lists recognition file E188111 |
| Environmental compliance | RoHS compliant, per Sentinel |
| Country of manufacture | USA, per Sentinel |
| Drawing reference | SD300112, revision A6, May 20, 2022 |
Choose the plug by conductor and jacket fit
The 0.037–0.042 in range is the diameter over each conductor’s insulation, not the overall cable diameter. This part accepts stranded conductors only. Confirm the cable’s minimum and maximum insulation diameters, strand construction, jacket diameter and shield arrangement before selecting a termination.
The jacket must be securely retained by the internal latch, and the cable shield must make the specified contact with the plug shell. Do not assume that a cable qualifies merely because its nominal wire gauge or Category label matches.
Termination and matched tooling
Use the matched Sentinel dual load bars and the termination procedure for this exact plug. Drawing SD300112 A6 identifies Sentinel hand-tool configurations 900005 tool with 900216 die and 900000 / 900208-1. Confirm the complete tool and installed die configuration with RF-AV before ordering tooling. A tool frame number alone does not establish plug compatibility.
The linked 111-series instruction sheet illustrates cable preparation, braid placement, conductor ordering, load-bar insertion and jacket retention. Its separate C-version steps apply only to the designated C-version plugs. Use the current LA4-specific procedure for final setup.
Category performance and assembly checks
Sentinel identifies this plug for Cat 6/6A applications. Finished-cord performance depends on the selected cable, pair preparation, matched tooling and workmanship. A plug component specification does not certify a completed cable assembly. Verify the required pinout, shorts/opens, shield continuity and any application-specific performance requirements after termination.
Drawings and instructions
- 111S08080095LA4 dimensional drawing — SD300112 A6, May 20, 2022 (PDF)
- Sentinel shielded 111-series Cat 6 termination instructions (PDF; no revision shown)
Common questions
Can I use solid cable with this plug?
No. Sentinel specifies stranded conductors only for 111S08080095LA4.
Does the insulation-diameter range describe the whole cable?
No. It describes each insulated conductor. Overall jacket diameter and strain-relief retention must be checked separately.
Are a crimper and boots included?
No. This is a 100-piece connector bag. The matched tool and die, cable and optional boots are separate items.
Will any RJ45 crimper work?
No. Use a manufacturer-recommended tool and die for this exact plug. Contact RF-AV with your plug number and existing tool/die markings before ordering.
Does the plug make my finished cord Cat 6A certified?
No. The cable, termination process and finished assembly must meet the project’s required tests.
Request a connector and tooling quote or call 800-239-0312. Include the cable manufacturer/part number, conductor insulation diameter, jacket diameter, quantity and intended use.
