Sentinel 900005 Ratchet Crimp Tool with 900216 Die
Sentinel 900005 Ratchet Crimp Tool with 900216 Die
Couldn't load pickup availability

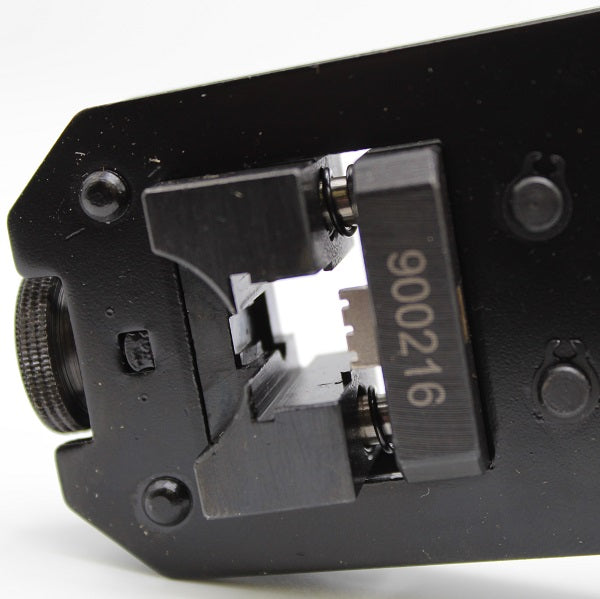

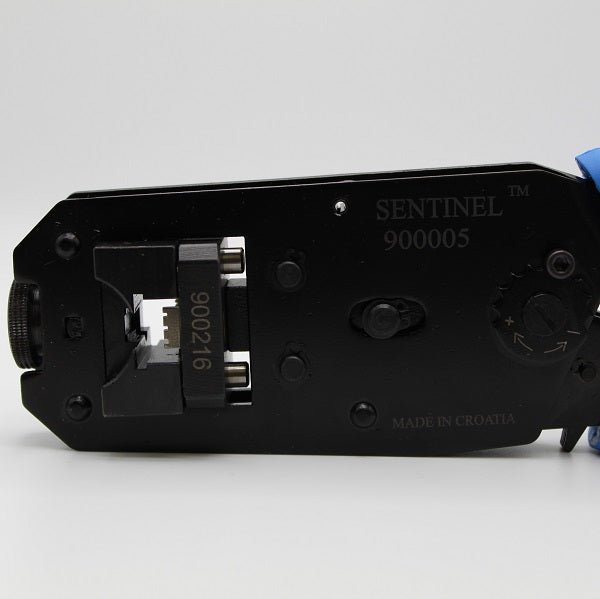

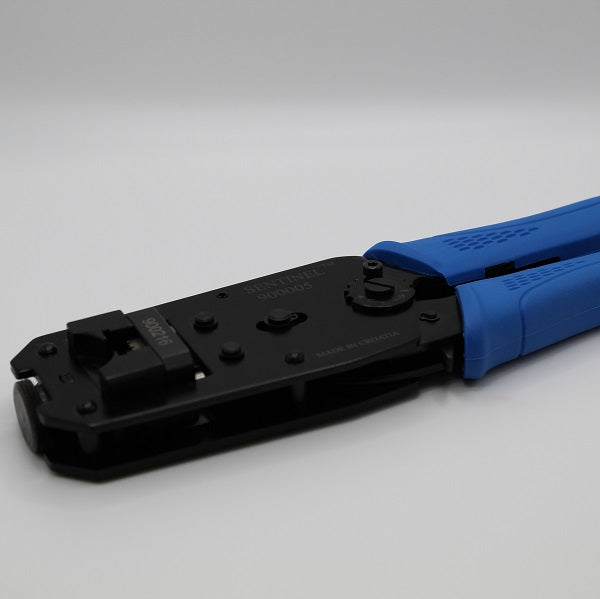

Sentinel 900005 is a ratcheting RJ45 crimp tool supplied in the manufacturer’s standard configuration with the 900216 die installed. This listing is for one complete hand tool and installed die, not a loose replacement die.
Availability: Contact RF-AV for current pricing, availability and lead time.
Tool and die specifications
| Manufacturer | Sentinel Connector Systems |
|---|---|
| Hand tool / installed die | 900005 / 900216 |
| Selling unit and contents | One complete ratchet hand tool with one factory-installed 900216 die set; connectors, cable and extra dies are separate |
| Mechanism | Controlled-cycle ratchet with release lever |
| Adjustment | Eccentric axle adjusts crimping force |
| Construction | Production-grade steel |
| Serviceable die | Replaceable; 900216 is also available separately from Sentinel |
| Exact plug reference | 111S08080095LA4 drawing SD300112 A6 identifies 900005 / 900216 as a recommended hand-tool configuration |
| Other manufacturer-listed families | 106-080800-34, 111-080800-28L34 and 114-040800-34. Confirm the exact plug suffix, required die and procedure before use |
| Conductor / cable limits | Determined by the selected plug. The LA4 plug is stranded-only and requires 0.037–0.042 in insulated conductor diameter |
| Country of manufacture | USA, per Sentinel |
Match the tool to the exact plug
Use the tool and die configuration called out for the connector being terminated. An RJ45 form factor or shared Sentinel series prefix does not establish compatibility. The 111S08080095LA4 shielded plug uses matched dual load bars and appears on drawing SD300112 A6 with the 900005 / 900216 recommendation.
Sentinel’s 900007 is a separate Type C crimp tool for designated 110S/111S C-crimp plugs. Do not substitute one configuration for the other without exact plug-and-die confirmation. If you already own a tool, provide its frame and die markings with the full plug part number before selecting parts.
Assembly use
Suitable for cable-assembly and field-termination work using the matching Sentinel plug and procedure. Check that the correct die is installed, prepare the cable and load bars to the connector instructions, and inspect the finished termination. A full ratchet cycle does not replace pinout, short/open, shield-continuity or application-specific performance checks.
Manufacturer documentation
- Sentinel 900005 tool and factory-installed 900216 die information
- LA4 drawing SD300112 A6 — May 20, 2022 (PDF)
- Shielded 111-series termination instructions (PDF; no revision shown)
Common questions
Does 900005 / 900216 mean two tools?
No. It identifies the 900005 hand tool and its 900216 die. This offering is one complete tool with the die installed.
Can I buy only the replacement die?
Sentinel offers 900216 separately. Contact RF-AV for a die-only quote; this listing is for the complete hand tool.
Will it terminate every RJ45 plug?
No. Match the exact connector and die configuration. A plug family name does not qualify every suffix or cable construction.
Is this the same as the 900007 Type C tool?
No. These are distinct tool configurations. Use the tool specified for your exact plug and termination method.
Does the crimper certify a finished cable?
No. Verify the completed assembly using the tests required by the application.
