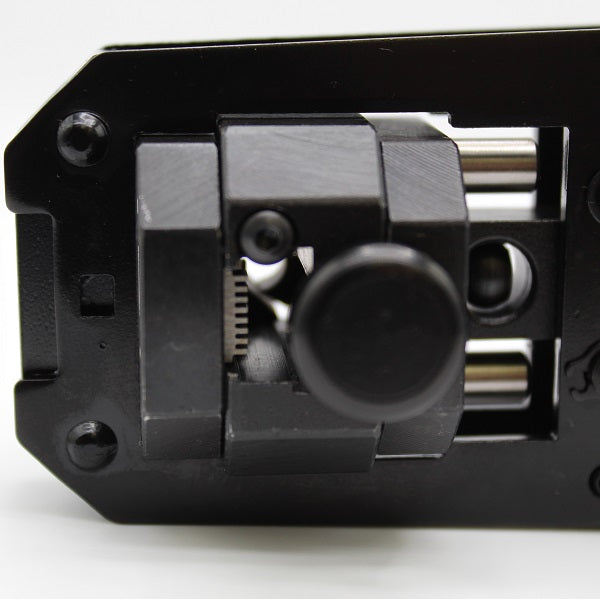

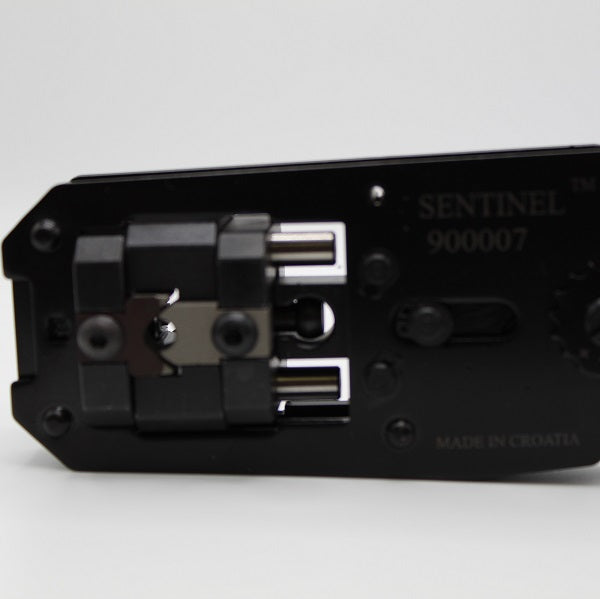

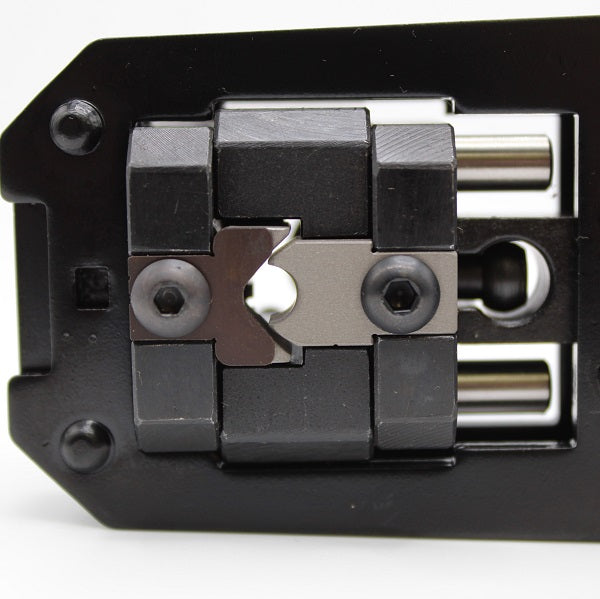

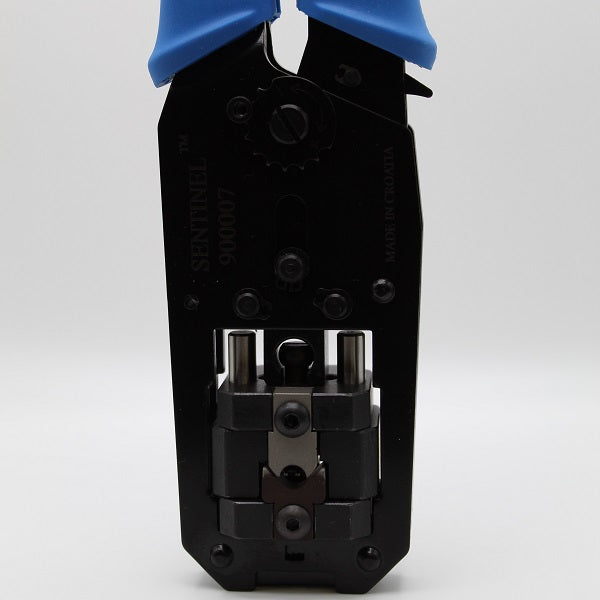

Sentinel 900007 Type C RJ45 Connector Crimp Tool
Sentinel 900007 Type C RJ45 Connector Crimp Tool
Couldn't load pickup availability
The Sentinel 900007 is a Type C ratcheting hand tool for shielded Sentinel 110S and 111S C-crimp RJ45 plugs. Select the exact connector and tool configuration together before planning a termination.
Selling unit: One 900007 hand tool. Cable, connectors and separate accessories are not included.
Availability: Special order. Contact RF-AV for current availability and lead time.
Technical specifications
| Manufacturer / part number | Sentinel Connector Systems / 900007 |
|---|---|
| Tool type | Type C, C-frame ratcheting hand tool |
| Connector family | Shielded Sentinel 110S and 111S RJ45 plugs, C-crimp versions |
| Mechanism | Full-cycle ratchet |
| Force adjustment | Eccentric axle |
| Release | Integrated ratchet release lever |
| Cable selection | Use the exact plug drawing and guide-plate requirements; the tool does not establish a universal cable-diameter range |
| Country of manufacture | USA, per Sentinel |
Choose the correct crimper
This Type C tool is a distinct configuration from the 900005 tool with 900216 die. Do not substitute between them on the basis of a shared RJ45 shape or series prefix.
For C-crimp connector selection, see the Sentinel 111S08080091C34 plug. Provide the full plug part number and tool markings when requesting a matched setup.
Assembly and inspection
Follow the connector-specific preparation and termination procedure. Check conductor order, seating, jacket retention and shield contact before crimping. Inspect each finished termination and perform the pinout, short/open, shield-continuity and performance checks required for the application. A completed ratchet cycle does not certify a cable assembly.
Manufacturer documentation
- Sentinel 900007 Type C tool specifications
- Shielded 111-series termination instructions (PDF; no revision shown) — use the C-version steps only for the designated C-version plugs.
Common questions
Is this the same tool as 900005 / 900216?
No. These are separate tool configurations. Match the tool to the exact plug drawing and required procedure.
Does it work with every shielded RJ45 plug?
No. RJ45 describes the interface, not a universal termination system. Confirm the exact connector suffix and tooling requirements.
Does it certify a completed cable?
No. Inspection and application-specific electrical or performance testing are separate from crimping.
