1000 ft Wavenet LUTRON-46/QSL/1000 | 12 AWG Lutron Control Cable
1000 ft Wavenet LUTRON-46/QSL/1000 | 12 AWG Lutron Control Cable
Couldn't load pickup availability

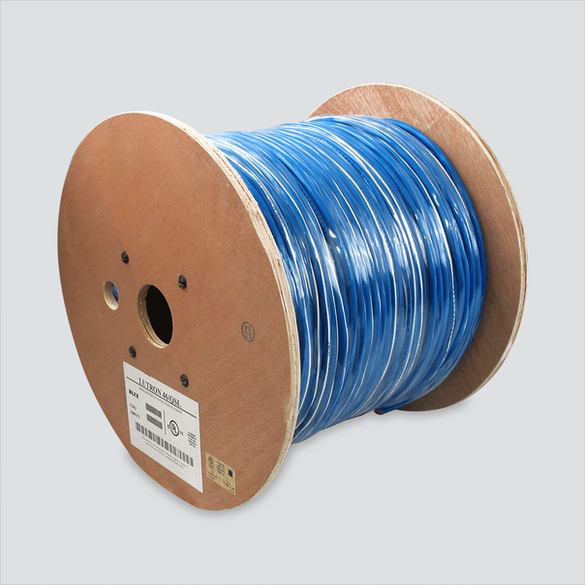

Wavenet LUTRON-46/QSL/1000 is a 12 AWG control cable cross-referenced to Lutron GRX-CBL-46L and Liberty LUTRON-RBL. It combines two 12 AWG power/common conductors, a shielded 22 AWG data pair and a separate 18 AWG sense conductor in one 1000 ft length.
Availability: Contact RF-AV for current lead time.
Construction at a glance
| Brand and model | Wavenet LUTRON-46/QSL/1000 |
|---|---|
| Length | 1000 ft per unit |
| Power and common | 2 conductors, 12 AWG |
| Communications | 2 conductors, 22 AWG; shield and drain wire |
| Sense conductor | 1 conductor, 18 AWG, separate from data pair and drain |
| Conductor count | 5 insulated conductors, plus drain wire |
| Jacket identification | Blue with white stripe |
| Version offered | Non-plenum |
| Cross-reference | Lutron GRX-CBL-46L; Liberty LUTRON-RBL |
| Conductor-to-conductor capacitance | 25 pF/ft maximum |
| Conductor-to-shield capacitance | 48 pF/ft maximum |
| Conductor material | Stranded bare copper |
| Power conductor stranding | 12 AWG: 65 strands × 0.254 mm |
| Data conductor stranding | 22 AWG: 7 strands × 0.254 mm |
| Sense conductor stranding | 18 AWG: 42 strands × 0.16 mm |
| Conductor insulation | SR-PVC |
| Insulated conductor diameters | 12 AWG: 2.9 ± 0.1 mm; 22 AWG: 1.3 ± 0.1 mm; 18 AWG: 1.9 ± 0.1 mm |
| Shield and drain | Overlapped aluminum foil; tinned-copper drain, 7 strands × 0.20 mm |
| Conductor colors | Power: black/red; data: white/purple; sense: orange |
| Jacket material and thickness | PVC; nominal thickness 0.65 mm |
| Ripcord | Nylon, 210D × 6 |
| Voltage rating | 300 V |
| Temperature rating | 75°C |
| Flame test designation | FT4 |
| Installation environment | Indoor power-limited circuits; non-plenum |
| Maximum conductor DC resistance at 20°C | 12 AWG: 5.41 Ω/km; 18 AWG: 21.9 Ω/km; 22 AWG: 55.4 Ω/km |
| Dielectric withstand, wire to wire | 1.5 kV, 50 Hz, 1 minute |
| Manufacturer-listed reel weight | 80 lb per 1000 ft reel |
12 AWG power with a dedicated sense conductor
Choose 46/QSL for the five-conductor GRX-CBL-46L cable callout. The 12 AWG power/common conductors, shielded data pair and separate 18 AWG sense conductor provide the distinct wiring functions in one jacket.
The sense conductor is separate from the data pair and shield drain. That distinction matters when selecting cable from a project drawing. Use the system's load, wiring distance and installation requirements to select the correct construction.
Get the right cable before the job starts
RF-AV helps electricians, lighting professionals and shade installers match cable to the project. Send us your cable part number, system model, longest run and plenum requirement for help selecting the Wavenet or Liberty option.
Compare cable options in the Lutron cable matrix, or call 800-239-0312 for selection, quantity pricing and current lead time.
Common questions
What is the cross-reference for Wavenet 46/QSL?
Wavenet cross-references LUTRON-46/QSL/1000 to Lutron GRX-CBL-46L and Liberty LUTRON-RBL. The product sold here is Wavenet-brand cable with 12 AWG power/common conductors, a shielded 22 AWG data pair and an 18 AWG sense conductor.
What is the additional 18 AWG conductor for?
It is the separate sense conductor used in the GRX-CBL-46L construction. Connect it according to the system wiring diagram; it is not the shield drain wire.
Is this plenum cable?
This is the non-plenum version. For a project requiring a plenum-rated cable, contact RF-AV for a plenum option.
How much cable is included?
Each unit contains 1000 ft of cable. Installation run limits are determined by the Lutron system design and connected load, rather than the package length.
