Lutron Sivoia Shade QS Cable

Find the right cable for your Lutron Sivoia QS shade or smart-panel run. Compare Wavenet value options and Liberty's established lighting-control cable range by power-conductor size, run distance and plenum requirements.

These are Wavenet- and Liberty-branded alternatives for Lutron applications, not Lutron-branded cable. RF-AV helps electricians, lighting and shade professionals cross-reference the project specification before ordering.

Lutron Sivoia QS cable selection matrix

Panel reference: QSPS-Px-10-60. Distances below are maximum runs per output for the cited Lutron shade configurations. Match the required jacket rating and complete cable specification, not gauge or jacket color alone.

Cable range 12 AWG power500 ft: one shade200 ft: supported multi-shade groups* 16 AWG power200 ft: one shade75 ft: supported multi-shade groups* 18 AWG power125 ft: one shade50 ft: supported multi-shade groups*
Wavenet
Non-plenumRecommended value option
1000 ft reels by quote 		LUTRON-46/QSL/1000GRX-CBL-46L cross-reference LUTRON-QS/M/1000QSH-CBL-M cross-reference LUTRON-GREENGRX-CBL-346S cross-reference
Liberty
Non-plenumEstablished premium option 		LUTRON-RBL
LLINX-U-HPLong-run options; confirm the specified construction. 		LUTRON-QSCQSH-CBL-M cross-reference LUTRON-YEL, 1000 ft
LUTRON-GRN, 500 ftGRX-CBL-346S cross-reference
Liberty

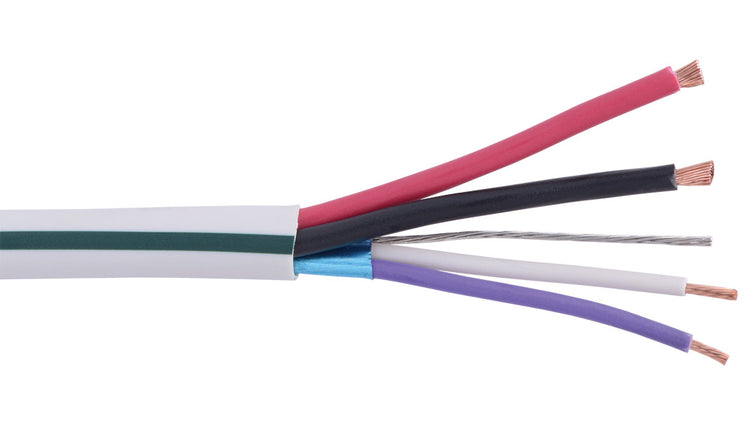

PlenumFor projects requiring a plenum-rated jacket 		LUTRON-P-RBLGRX-PCBL-46L cross-reference LUTRON-P-QSCQSH-CBLP-M cross-reference LUTRON-P-GRN, 1000 ft
LUTRON-P-GRN, 500 ftGRX-PCBL-346S cross-reference

*Multi-shade limits are not a blanket allowance for any two or more shades. The cited guide lists: two Roller 64 shades up to 30 sq ft each; three Roller 64 shades up to 20 sq ft each; or two Roller 100 shades up to 50 sq ft each. Its single-shade row allows one additional power draw unit.

Distance source: Lutron HomeWorks QS system drawing and shade wiring guide (PDF). This establishes the system limits, not approval of third-party cable. Confirm current equipment documentation and project requirements before installation.

Cable selection questions

Should I choose Wavenet or Liberty?

Wavenet is our value-focused option for the three non-plenum constructions above. Liberty remains our premium alternative, with a long track record in lighting and shade-control applications and additional plenum choices. Start with the specified cable construction; RF-AV can help compare available manufacturer data and prepare a project quote.

Do these distances apply to every Lutron power supply?

No. This matrix uses the QSPS-Px-10-60 smart-panel reference. Lutron lists different limits for individual power supplies, and shade type and load also matter. A shade power run and the total QS control-link length are different limits; use the documentation for your exact equipment.

Can I replace a specified plenum cable with non-plenum cable?

Not when the project or installation requires a plenum rating. The Wavenet options shown here are non-plenum; choose the appropriate Liberty plenum option or ask us to review another specified cable. Confirm the complete cable ratings against the project requirements.

Are 500 ft reels or shorter cable lengths available?

Selected Liberty products are offered in 500 ft reels, 1000 ft reels or by the foot. See the available cable lengths below for each product's current options. Wavenet quotes on this page are for 1000 ft reels. Cut lengths and vendor-direct material may have different lead times; confirm before scheduling an installation.

Get the right cable on the first order

Send your cable callout, power-supply model, run length, shade quantity and jacket requirement. RF-AV can help cross-reference the part, provide available specification sheets and confirm stock or lead time.

Request a project quote or call 800-239-0312 for a time-sensitive project.
