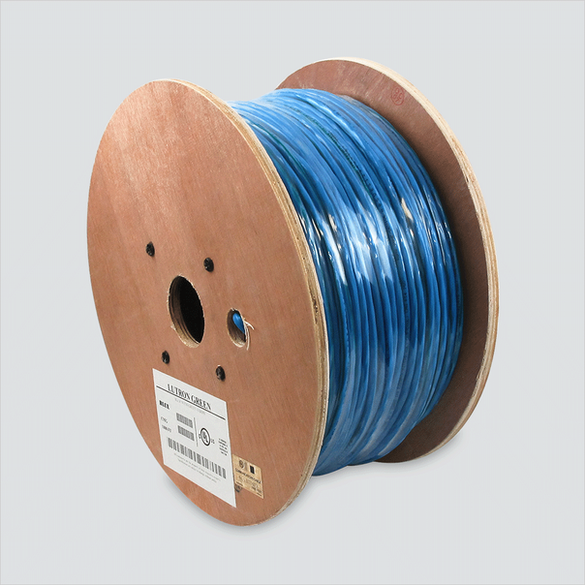

Wavenet LUTRON-GREEN is an 18 AWG control cable cross-referenced to Lutron GRX-CBL-346S and Liberty LUTRON-GRN. It combines two 18 AWG power/common conductors with a separate shielded 22 AWG data pair in one jacket, giving lighting installers the power and communications wiring in a single 1000 ft length.
Availability: On backorder. Contact RF-AV for current lead time.
Construction at a glance
| Brand and model | Wavenet LUTRON-GREEN |
|---|---|
| Length | 1000 ft per unit |
| Power and common | 2 conductors, 18 AWG |
| Communications | 2 conductors, 22 AWG; shield and drain wire |
| Conductor count | 4 insulated conductors, plus drain wire |
| Jacket identification | Blue with green stripe |
| Version offered | Non-plenum |
| Cross-reference | Lutron GRX-CBL-346S; Liberty LUTRON-GRN |
| Capacitance, conductor to conductor | 25 pF/ft maximum |
| Capacitance, conductor to shield | 48 pF/ft maximum |
| Application environment | Indoor, power-limited control circuits |
| Conductor material | Stranded bare copper |
| 22 AWG data-pair stranding | 7 × 0.254 mm (wire diameter tolerance ±0.008 mm) |
| Data insulation | Foam PE; nominal thickness 0.60 mm; insulated diameter 2.0 mm |
| 18 AWG power stranding | 42 × 0.16 mm (wire diameter tolerance ±0.008 mm) |
| Power insulation | PVC; nominal thickness 0.35 mm; insulated diameter 1.9 ±0.05 mm |
| Drain wire | Stranded tinned copper, 7 × 0.20 mm |
| Shield | Aluminum/polyester foil |
| Jacket | PVC; nominal thickness 0.65 mm |
| Overall diameter | 5.60 ±0.10 mm |
| Ripcord | 210D × 6 nylon thread |
| Conductor colors | Data: white/blue; power: black/red |
| Voltage rating | 300 V |
| Temperature rating | 75 °C |
| Flame test | FT4 |
| Package | 1,000 ft reel; manufacturer listed weight 35 lb |
Select the right Lutron control cable
LUTRON-GREEN is the Wavenet choice for an 18 AWG GRX-CBL-346S cable callout. The separate shielded data pair carries communications alongside the power/common conductors, while the green stripe helps identify this construction during installation.
Power-conductor size matters: GREEN uses 18 AWG, QS/M uses 16 AWG, and 46/QSL uses 12 AWG with an additional sense conductor. Select the construction for your system's load, wiring distance and installation requirements.
Get the right cable before the job starts
RF-AV helps electricians, lighting professionals and shade installers match cable to the project. Send us your cable part number, system model, longest run and plenum requirement for help selecting the Wavenet or Liberty option.
Compare cable options in the Lutron cable matrix, or call 800-239-0312 for selection, quantity pricing and current lead time.
Common questions
What is the cross-reference for Wavenet LUTRON-GREEN?
Wavenet cross-references LUTRON-GREEN to Lutron GRX-CBL-346S and Liberty LUTRON-GRN. The product sold here is Wavenet-brand cable with two 18 AWG power/common conductors and a shielded 22 AWG data pair.
How is GREEN different from QS/M?
GREEN has 18 AWG power/common conductors; QS/M has larger 16 AWG power/common conductors. Both include a separate shielded 22 AWG data pair. Use the gauge specified for your system and run length.
Is this plenum cable?
This is the non-plenum version. For a project requiring a plenum-rated cable, contact RF-AV for a plenum option.
How much cable is included?
Each unit contains 1000 ft of cable. Installation run limits are determined by the Lutron system design and connected load, rather than the package length.
