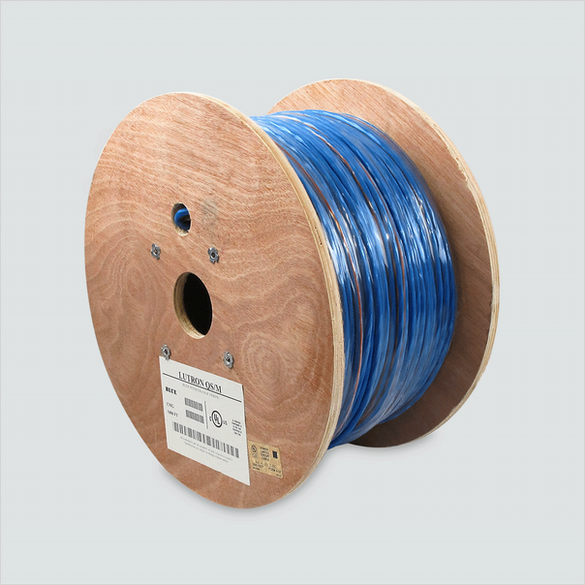

Wavenet LUTRON-QS/M/1000 is a 16 AWG control cable cross-referenced to Lutron QSH-CBL-M and Liberty LUTRON-QSC. Two 16 AWG power/common conductors and a separate shielded 22 AWG data pair bring power and communications together in a single 1000 ft length for lighting and shade-control projects.
Availability: Contact RF-AV for current lead time.
Construction at a glance
| Brand and model | Wavenet LUTRON-QS/M/1000 |
|---|---|
| Length | 1000 ft per unit |
| Power and common | 2 conductors, 16 AWG |
| Communications | 2 conductors, 22 AWG; shield and drain wire |
| Conductor count | 4 insulated conductors, plus drain wire |
| Jacket identification | Blue with orange stripe |
| Version offered | Non-plenum |
| Cross-reference | Lutron QSH-CBL-M; Liberty LUTRON-QSC |
| Capacitance, conductor to conductor | 23.9 pF/ft maximum |
| Capacitance, conductor to shield | 37 pF/ft maximum |
| Nominal mutual capacitance | 19.7 pF/ft |
| Conductor material | Stranded bare copper |
| 22 AWG data-pair stranding | 7 × 0.254 mm (wire diameter tolerance ±0.008 mm) |
| Data insulation | Foam PE; nominal thickness 0.51 mm; insulated diameter 1.8 mm |
| 16 AWG power stranding | 26 × 0.254 mm (wire diameter tolerance ±0.008 mm) |
| Power insulation | PVC; nominal thickness 0.33 mm; insulated diameter 2.15 ±0.05 mm |
| Drain wire | Stranded tinned copper, 7 × 0.20 mm |
| Shield | Aluminum/polyester foil |
| Jacket | PVC; nominal thickness 0.65 mm |
| Overall diameter | 5.80 ±0.10 mm |
| Ripcord | 210D × 6 nylon thread |
| Conductor colors | Data: white/blue; power: black/red |
| Voltage rating | 300 V |
| Temperature rating | 75 °C |
| Flame test | FT4 |
| Application environment | Indoor, power-limited control circuits |
| Package | 1,000 ft reel; manufacturer listed weight 40 lb |
The 16 AWG option for your cable schedule
Choose QS/M when the project calls for the 16 AWG QSH-CBL-M construction. Its larger power/common conductors distinguish it from the 18 AWG GREEN version, while the separate shielded 22 AWG pair serves the communications link.
For QS lighting and shade wiring, size the cable to the system design, connected load and run length. The blue jacket with orange stripe identifies this Wavenet construction, making it easier to distinguish cable types on the job.
Get the right cable before the job starts
RF-AV helps electricians, lighting professionals and shade installers match cable to the project. Send us your cable part number, system model, longest run and plenum requirement for help selecting the Wavenet or Liberty option.
Compare cable options in the Lutron cable matrix, or call 800-239-0312 for selection, quantity pricing and current lead time.
Common questions
What is the cross-reference for Wavenet QS/M?
Wavenet cross-references LUTRON-QS/M/1000 to Lutron QSH-CBL-M and Liberty LUTRON-QSC. The product sold here is Wavenet-brand cable with two 16 AWG power/common conductors and a shielded 22 AWG data pair.
How is QS/M different from GREEN and 46/QSL?
QS/M uses 16 AWG power/common conductors. GREEN uses 18 AWG, and 46/QSL uses 12 AWG with an additional 18 AWG sense conductor. Select the construction called for by your system wiring design.
Is this plenum cable?
This is the non-plenum version. For a project requiring a plenum-rated cable, contact RF-AV for a plenum option.
How much cable is included?
Each unit contains 1000 ft of cable. Installation run limits are determined by the Lutron system design and connected load, rather than the package length.
